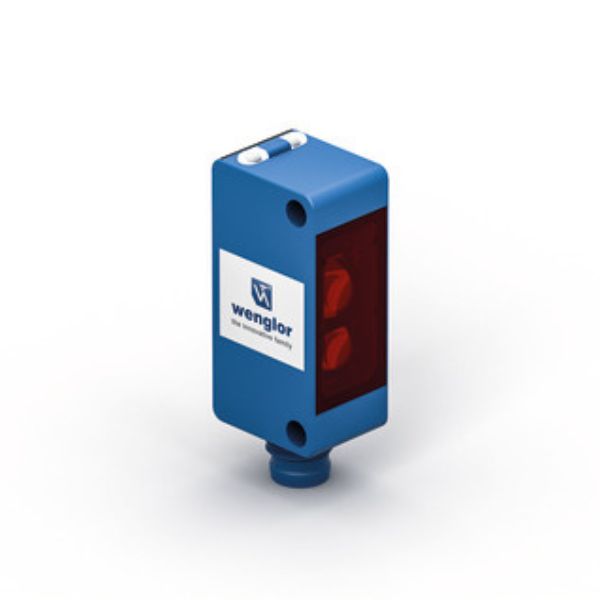

Wenglor P1KH004 Reflex Sensor Background Suppression

Product Note:

No product notes available.

Description

Wenglor P1KH004 Reflex Sensor Background Suppression

Wenglor P1KH004 Reflex Sensor Background Suppression The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO, switching distance) and to output switching statuses and distance values.

Features at a Glance

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Electrical Data

  • Supply Voltage: 10 … 30 V DC
  • Supply Voltage with IO-Link: 18 … 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 1,000 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response Time: 0.5 ms
  • Response time (interference-free mode): 1 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40 … 60 °C
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Interface: IO-Link V1.1
  • Protection Class: III

Features

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Applications

B_BED_1K_01.eps
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning
68 = supply voltage indicator

Specifications

Optical Data

Range150 mm
Setting Range30 … 150 mm
Switching Hysteresis < 10 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Light Spot Diametersee Table 1

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Degree of ProtectionIP67/IP68
ConnectionM8 × 1; 3-pin
Optic CoverPMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1)1,725.77 a

Output

PNP NOyes
IO-Linkyes

Adjustable parameters

OutputPush-pull
NPN
PNP
CircuitNC
NC/NO
NO
Other parametersOff-delay
On-delay
Mode of operation
Hysteresis
Switching point
Emitted light

Table 1

Detection Range50 mm100 mm150 mm
Light Spot Diameter5 mm7 mm10 mm

Downloads

Datasheet : Wenglor P1KH004 Reflex Sensor with Background Suppression
