Wenglor P1NH302 Reflex Sensor Background Suppression

Product Note:

No product notes available.

Description

Wenglor P1NH302 Reflex Sensor Background Suppression

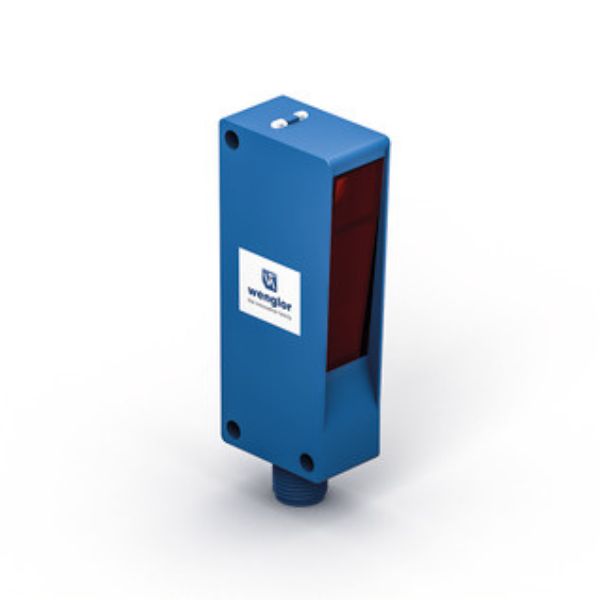

Wenglor P1NH302 Reflex Sensor Background Suppression The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.

Reflex Sensors With Background Suppression

Reflex sensors with background suppression detect and measure objects contactless and detect them in front of any defined background. They work with red light, infrared light, blue light, or laser light. Thanks to the principle of angle measurement, the color, shape, and object surface have no influence on the switching behavior of the sensors.

Features

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Applications

B_BED_A_28.eps
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning
68 = supply voltage indicator

Specifications

Optical Data

Range500 mm
Setting Range60 … 500 mm
Switching Hysteresis < 5 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux

Electrical Data

Supply Voltage10 … 30 V DC
Supply Voltage with IO-Link18 … 30 V DC
Current Consumption (Ub = 24 V)< 25 mA
Switching Frequency1,000 Hz
Switching Frequency (interference-free mode)500 Hz
Response Time0.5 ms
Response time (interference-free mode)1 ms
Temperature Drift< 5 %
Temperature Range-40 … 60 °C
Switching Output Voltage Drop< 2 V
Switching Output/Switching Current100 mA
Residual Current Switching Output< 50 µA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
InterfaceIO-Link V1.1
Protection ClassIII

Mechanical Data

Setting MethodSingle-turn
Housing MaterialPlastic
Degree of ProtectionIP67/IP68
ConnectionM12 × 1; 4-pin
Optic CoverPMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1)2,069.6 a

Output

PNP NO/NC antivalentyes
IO-Linkyes

Adjustable parameters

OutputPush-pull
NPN
PNP
CircuitNC
NO
Inactive
Error output
NC+NO
Other parametersOff-delay
On-delay
Mode of operation
Hysteresis
Switching point
Emitted light

Table 1

Detection Range60 mm250 mm500 mm
Light Spot Diameter11 mm13 mm15 mm

Downloads

Datasheet : Wenglor P1NH302 Reflex Sensor with Background Suppression

Related Products

Wenglor P1NH302 Reflex Sensor Background Suppression

Wenglor P1NH302 Reflex Sensor Background Suppression The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other.

Product Note:

No product notes available.

Loading...

Description

Wenglor P1NH302 Reflex Sensor Background Suppression

Wenglor P1NH302 Reflex Sensor Background Suppression The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.

Reflex Sensors With Background Suppression

Reflex sensors with background suppression detect and measure objects contactless and detect them in front of any defined background. They work with red light, infrared light, blue light, or laser light. Thanks to the principle of angle measurement, the color, shape, and object surface have no influence on the switching behavior of the sensors.

Features

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Applications

B_BED_A_28.eps
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning
68 = supply voltage indicator

Specifications

Optical Data

Range500 mm
Setting Range60 … 500 mm
Switching Hysteresis < 5 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux

Electrical Data

Supply Voltage10 … 30 V DC
Supply Voltage with IO-Link18 … 30 V DC
Current Consumption (Ub = 24 V)< 25 mA
Switching Frequency1,000 Hz
Switching Frequency (interference-free mode)500 Hz
Response Time0.5 ms
Response time (interference-free mode)1 ms
Temperature Drift< 5 %
Temperature Range-40 … 60 °C
Switching Output Voltage Drop< 2 V
Switching Output/Switching Current100 mA
Residual Current Switching Output< 50 µA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
InterfaceIO-Link V1.1
Protection ClassIII

Mechanical Data

Setting MethodSingle-turn
Housing MaterialPlastic
Degree of ProtectionIP67/IP68
ConnectionM12 × 1; 4-pin
Optic CoverPMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1)2,069.6 a

Output

PNP NO/NC antivalentyes
IO-Linkyes

Adjustable parameters

OutputPush-pull
NPN
PNP
CircuitNC
NO
Inactive
Error output
NC+NO
Other parametersOff-delay
On-delay
Mode of operation
Hysteresis
Switching point
Emitted light

Table 1

Detection Range60 mm250 mm500 mm
Light Spot Diameter11 mm13 mm15 mm

Downloads

Datasheet : Wenglor P1NH302 Reflex Sensor with Background Suppression
