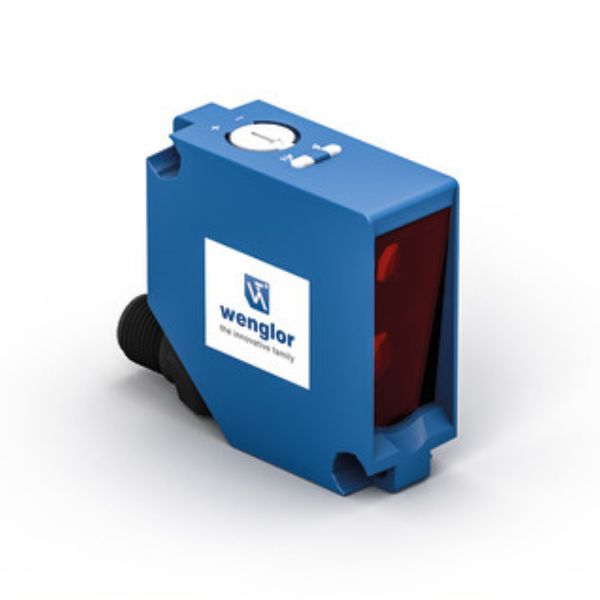

Wenglor P1PH603 Reflex Sensor Background Suppression

Product Note:

No product notes available.

Description

Wenglor P1PH603 Reflex Sensor Background Suppression

Wenglor P1PH603 Reflex Sensor Background Suppression the reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO, switching distance) and to output switching statuses and distance values.

Features at a Glance

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Optical Data

  • Range: 1,200 mm
  • Setting Range: 100 … 1,200 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = +25 °C): 100,000 h
  • Max. Ambient Light: 10,000 Lux

Features

  • Condition monitoring
  • Low switching distance deviation for black/white
  • IO-Link 1.1
  • Reliably detect objects against any background

Applications

Leading Edge Detection for Wooden Boards Via Reflex Sensors with Background Suppression

In the wood industry, boards must be transported between the process steps on feeders. In order to reliably detect the leading edges of the wooden boards along the entire width, several reflex sensors with background suppression are installed along the transport line. Dark boards or boards with knotholes are reliably detected. The sensors also detect increasing contamination from dust or sawdust. Thanks to the contamination output, cleaning of the lenses can be triggered via an early warning signal without stopping production.

Reflex Sensors With Background Suppression

Reflex sensors with background suppression detect and measure objects contactlessly and detect them in front of any defined background. They work with red light, infrared light, blue light or laser light. Thanks to the principle of angle measurement, the color, shape and object surface have no influence on the switching behavior of the sensors.

Specifications

Optical Data

Range1,200 mm
Setting Range100 … 1,200 mm
Switching Hysteresis < 5 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux

Electrical Data

Supply Voltage15 … 30 V DC
Supply Voltage with IO-Link18 … 30 V DC
Current Consumption (Ub = 24 V)< 20 mA
Switching Frequency600 Hz
Switching Frequency (interference-free mode)400 Hz
Response Time1.5 ms
Response time (interference-free mode)2 ms
Temperature Drift< 6 %
Temperature Range-40 … 60 °C
Switching Output Voltage Drop< 2 V
Switching Output/Switching Current100 mA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
InterfaceIO-Link V1.1
Protection ClassIII

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Degree of ProtectionIP67/IP68
ConnectionM12 × 1; 4-pin
Optic CoverPMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1)924.64 a

Output

PNP NO/NC antivalentyes
IO-Linkyes

Adjustable parameters

OutputPush-pull
NPN
PNP
CircuitNC
NO
Inactive
Error output
NC+NO
Other parametersOff-delay
On-delay
Mode of operation
Hysteresis
Switching point
Emitted light

Table 1

Detection Range100 mm600 mm1200 mm
Light Spot Diameter14 mm17 mm24 mm

Downloads

Datasheet : Wenglor P1PH603 Reflex Sensor with Background Suppression
