Description

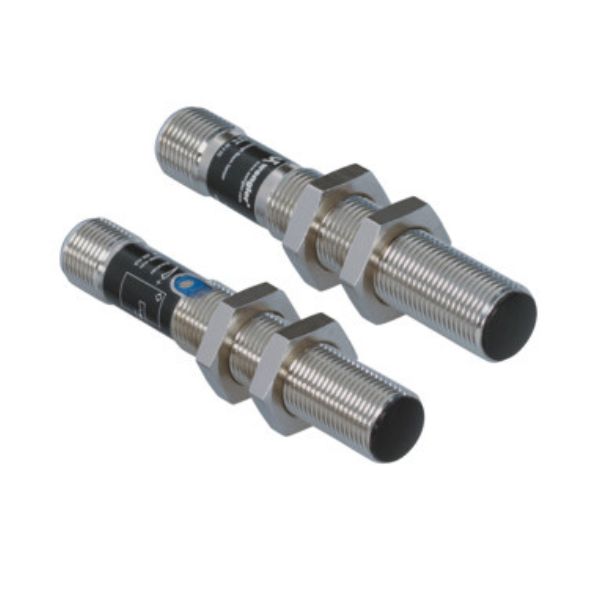

Wenglor SO983 Through Beam Sensor
Wenglor SO983 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Electrical Data
- Ample performance reserves
- Infrared light
- Insensitive to contamination
- Test input
- Optical Data
- Range: 10000 mm
- Light Source: Infrared Light
- Service Life (T = +25 °C) : 100000 h
- Opening Angle: 12 °
- Electrical Data
- Sensor Type: Emitter
- Supply Voltage: 10…30 V DC
- Current Consumption (Ub = 24 V) : < 40 mA
- Temperature Drift: < 10 %
- Temperature Range : -10…60 °C
- Reverse Polarity Protection: yes
- Protection Class: III
- Mechanical Data
- Housing Material: CuZn, nickel-plated
- Full Encapsulation: yes
- Degree of Protection: IP67
- Connection : M12 × 1; 4-pin
Features at a Glance
- Ample performance reserves
- Infrared light
- Test input
- Insensitive to contamination
