Werma Kompakt 37 Signal Tower

Product Note:

No product notes available.

Description

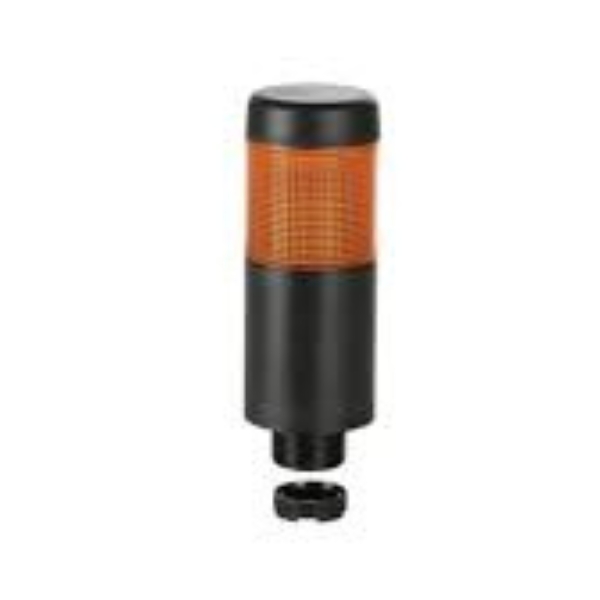

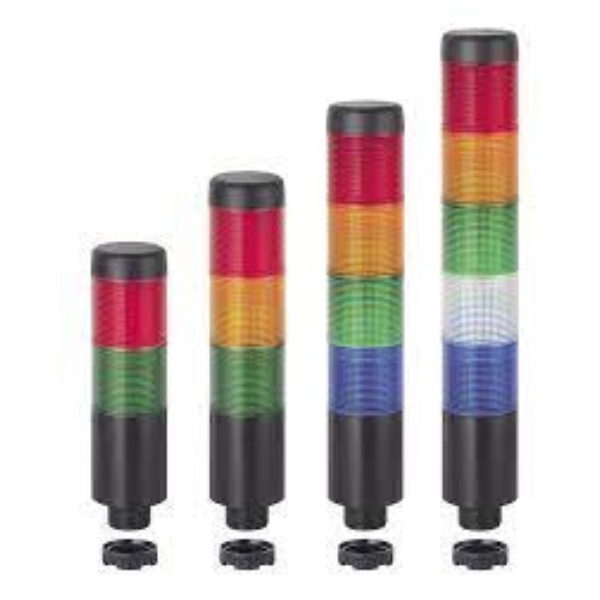

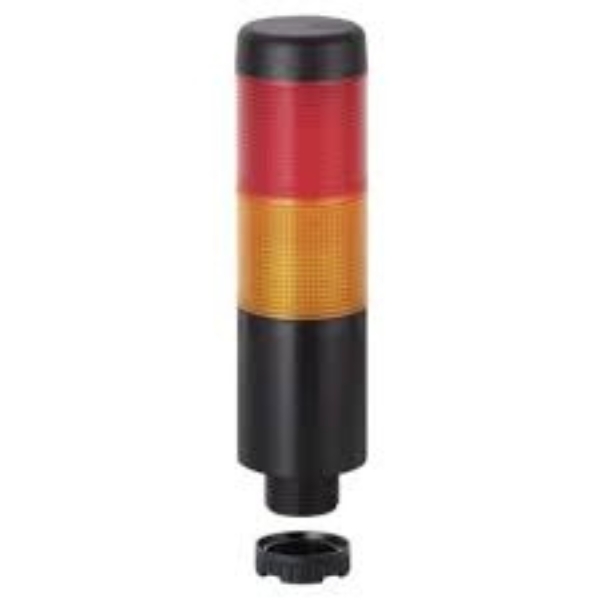

Werma Kompakt 37 is a completely pre-assembled signal tower that can be easily ordered under a single part number. With 1-5 visual tiers, the slim signal tower can be installed quickly and easily. The compact and completely enclosed construction is ideal for use in all types of public areas because it is tamper-proof.

Werma Kompakt 37 Signal Tower Features

  • Up to six Levels of signal escalation are possible  – including  an audible signal
  • In Classic LOOK or Design LOOK  to suit all machine  surfaces
  • Clearly visible  from all positions thanks to the Omni VIEW lens with  no blinds  sports



Features

  • Pre-assembled with easy cable  connection  or M12 Plug for Plug  & play use
  • Pre-assembled signal tower with 5 tiers (blue/clear/green/yellow/red)
  • LED permanent light
  • With M12 plug
  • Also available in metal finish and clear lens

Applications

  • Fault signalling
  • On smaller Machines and equipment
  • On point-of -sale and access control systems

Specifications

Mechanical data
Height243 mm
Diameter38 mm
MaterialsPC
Dome colourBlue
Clear
Green
Red
Yellow
Housing colourBlack
Protection categoryIP65
ConnectionM12 plug 8-pole
Cable entryMembrane grommet
Cable entry minimumd = 1 mm
Cable entry maximumd = 9 mm
Tension reliefPull-out protection
Type of fixingBuilt-in mounting
Working temperature minimum-20°C
Working temperature maximum+50°C
Weight with packaging170 g
Product weight116 g
Electrical data



Operating voltage24V
Operating voltage typeAC/DC
Operating voltage frequency50Hz
Operating voltage tolerance+/- 10%
Rated operational voltage24 VDC
Rated operational current175 mA
Rated inrush current500 mA
Protection classProtection class 2
Pollution degree3
In the connection area: 2
Optical data
Light sourceLED
Light colourBlue
Green
Red
White
Yellow
Optical signal imagePermanent
Service life optical50,000 h maximum



Approval datax
Conforms with CEYes
WEEEYes
Conforms with RED directiveNo
Conforms with ATEX-directiveNo
Conforms with CCCNo
Conforms with ULcULus
UL Type RatingType 12
Type 4X
Conforms with FCCNo
Conforms with ICNo
EAC certificate availableYes
Conforms with UKCA (Importer)Yes (WERMA (UK) Ltd.)
Conforms with AS-INo
ICAO CertificationNo
Conforms with DNVNo
Conforms with RoHS CNNo
Conforms with VdSNo
