Description

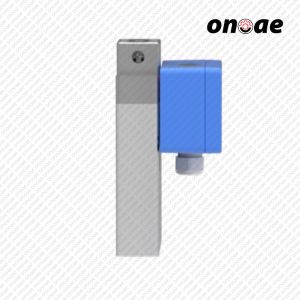

Coriolis Mass Flow Meter RHM04 With RHE27
Coriolis Mass Flow Meter RHM04 with RHE27 is a mass flow meter specifically designed for highly demanding industrial applications. With the ability to operate in extreme pressure and temperature conditions, it provides highly accurate and reliable mass flow measurement.
The RHM 04 is a fast response solution for batching, dispensing and filling applications. Very high pressure ratings allow deployment in processes where Coriolis meter use has not been possible in the past.
- Range: 0.05 kg/min up to 18 kg/min
- Pressure: up to 1401 bar (20319 psi)
- Temperature: -196°C (-321°F) up to +210°C (410°F)
- Accuracy: 0.1 % of rate
- Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Sandvik HP160, Alloy C22 – 2.4602
- Process Connection: ¼” up to 1″

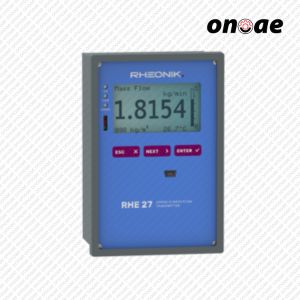

RHE27
The RHE27 is an advanced function transmitter designed for rack or panel mounting in an indoor environment. Features such as API Standard Volume correction and Net Oil calculation are available.
- Measures Mass Flow, Volumetric Flow, Density and Temperature
- Outputs 2 x Analog, 2 x Frequency/Pulse, 2 x Digital Status,´
- Inputs 2 x Digital, 1 x Analog
- PC USB for RHECom, RS 485 for Modbus RTU, HART over Analog
- Optional Backlit Color LCD
- ATEX/IEC Ex, CSA approved
- Rheonik Assurance Factor
