CS Instruments VA 521 – Compact Inline Flow Meter For Compressed Air And Other Gas Types

CS Instruments VA 521 can reduce your energy costs and increase your sustainability.

Categories: , Tags: , ,

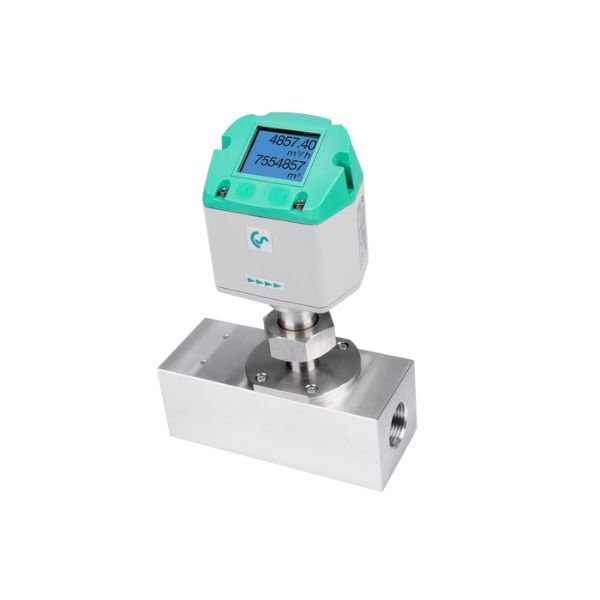

CS Instruments VA 521
CS Instruments VA 521 - Compact Inline Flow Meter For Compressed Air And Other Gas Types
CS Instruments VA 521
CS Instruments VA 521 - Compact Inline Flow Meter For Compressed Air And Other Gas Types
CS Instruments VA 521 - Compact Inline Flow Meter For Compressed Air And Other Gas Types
CS Instruments VA 521
CS Instruments VA 521 - Compact Inline Flow Meter For Compressed Air And Other Gas Types
CS Instruments VA 521
CS Instruments VA 521 - Compact Inline Flow Meter For Compressed Air And Other Gas Types
CS Instruments VA 521 - Compact Inline Flow Meter For Compressed Air And Other Gas Types
Loading...

Description

CS Instruments VA 521 can reduce your energy costs and increase your sustainability. Monitor the consumption of each machine and analyze your leakage flows with just one measuring device.

CS Instruments VA 521 Advantages

  • Measurement of mass flow rate, output of standard volume flow rate without additional measurement of pressure and temperature.

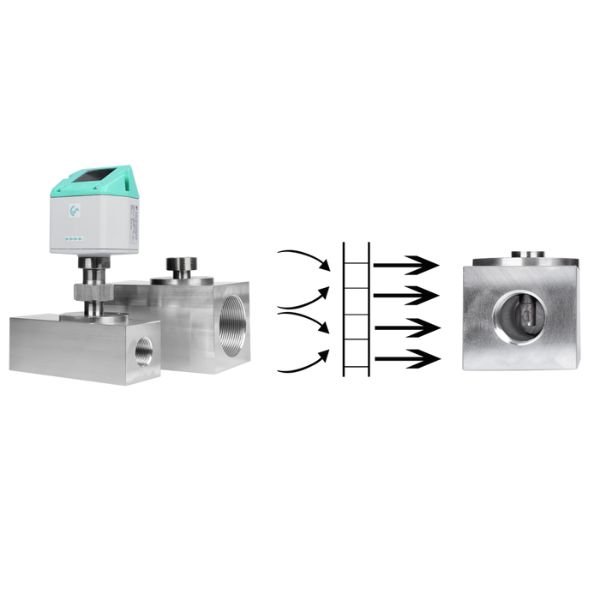

  • Compact device for installation in limited space, no inlet and outlet sections necessary due to the integrated flow straightener
  • Highly accurate at small as well as high flowrates

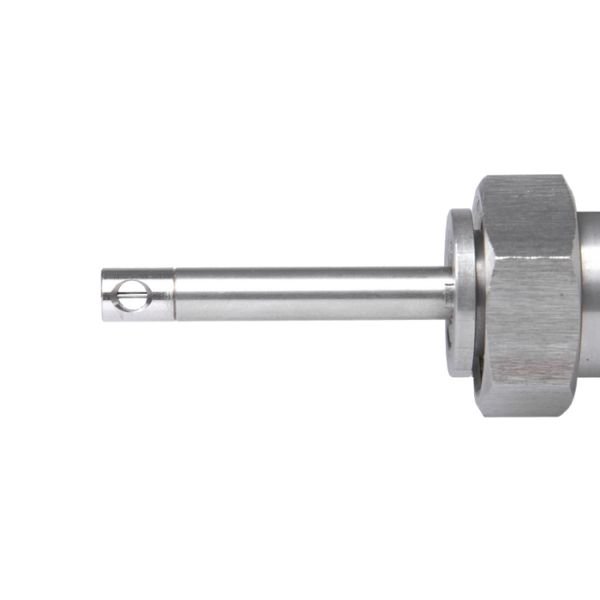

  • Easy installation and removal of the sensor, the integrated measuring section can remain in the line for cleaning or recalibration of the sensor and can simply be closed with a sealing cap
  • There no moving parts, therefore low maintenance required
  • Can be used for compressed air and non-corrosive gases such as nitrogen, oxygen, argon, helium, etc

Features

  • Compact, small design – for use in machines, behind maintenance unit on the end user
  • All interfaces are freely programmable via the display
  • Modbus-RTU output
  • ..20 mA analogue output for present flow
  • Pulse output total fl ow (counter reading), electrically isolated. Optional: M-Bus, Ethernet interface or PoE

Applications

  • Underwater Noise Protection / Bubble Curtain
  • Efficiency-FAD analysis for compressors
  • Flow meters for professionals – optionally with ATEX approval
  • Flow meters for oxidizing gases
  • Consumption sensors and flow meters for inert gases
  • Flow meters for toxic and corrosive gases
  • Consumption meter for oxygen, hydrogen, carbon dioxide
  • Consumption meter for nitrogen in tire vulcanization
  • Consumption meter for gas measurement in the aerospace industry
  • Flow and consumption meter for gas measurement in the automotive industry
  • Consumption meter for gas measurement in metal processing
  • Consumption sensor for flow measurement of oxygen
  • Consumption meter for argon and nitrogen in chemistry
  • Nitrogen consumption measurement in the food industry
  • Inline consumption meter for nitrogen generators
  • Flow measurement in gas mixtures as source gas
  • Food gas measurement
  • Measurement of the flow rate in a compressed air production line in the cosmetics sector

Specifications

  • 04…20 mA, pulse and a Modbus RTU (RS 485) interface as standard
  • Optional interfaces: Modbus TCP (Ethernet), PoE, M-Bus
  • Pressure range up to 40 bar
  • Temperature range up to 80°C
  • Integrated display to show the measured values

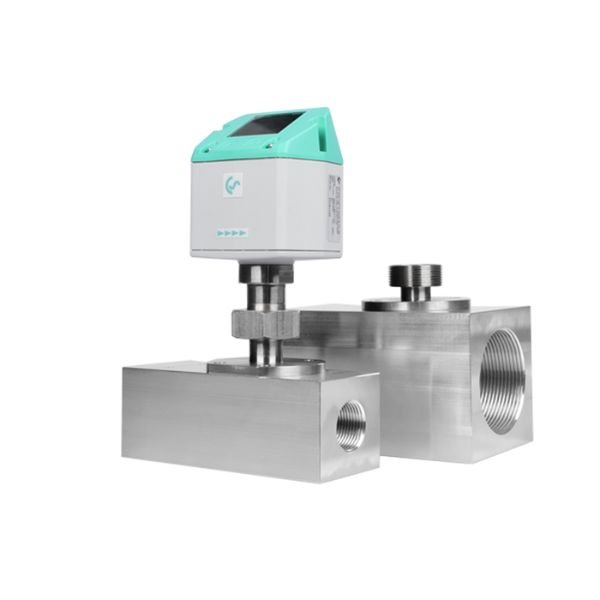

  • Available from ½” to 2”
  • Settings adjustable via the keys of the display
  • Main counter can be reset via the display
  • For velocities up to 224 Nm/s
  • Extremely precise with an accuracy of ± 1.5% or ± 1% of the measured value – as well as ± 0.3% of the final value

Downloads

CS Instruments VA 521 – Compact Inline Flow Meter For Compressed Air And Other Gas Types
