Sale!

Original price was: Rp 30.550.000.Current price is: Rp 30.450.000.

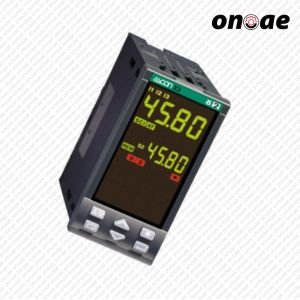

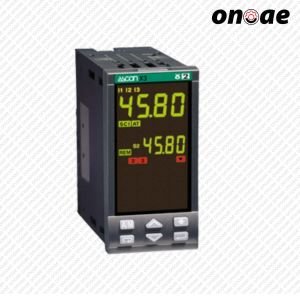

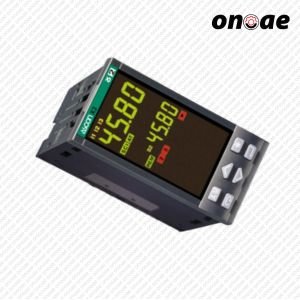

DOUBLE ACTION CONTROLLER ASCON X3 MODEL

Name: DOUBLE ACTION CONTROLLER ASCON X3 MODEL | onoae
SKU: DACASCONX3MODEL
Price: 30450000 IDR
Availability: InStock

Minimum Order: 1 units

Lead Time: 8 weeks

Lead Time Note: 8-9 Minggu

Product Note:

No product notes available.

SKU: DACASCONX3MODEL Category: Display, Indicator, and Control Tags: Ascon X3, Display Indicator and Control, DOUBLE ACTION CONTROLLER ASCON X3

Available on backorder

Description

Description of DOUBLE ACTION CONTROLLER ASCON X3 MODEL

ASCON X3 is a 1/8 DIN (48 x 96 mm) industrial controller designed for high-precision temperature and process control applications. As part of the Gammadue series, the X3 offers PID control with single and dual action (heat/cool) capabilities, as well as analog outputs for linear control or valve control. With features such as Auto/Manual switching, internal timer, and RS485 serial communication, the X3 provides flexibility and reliability in a wide range of industrial applications.

Features

Advanced PID Control: Supports PID control with overshoot control, single or double action, as well as valve control without position potentiometer.
Universal Inputs: Accepts various types of input signals such as thermocouples (L, J, K, S, R, B, N, E), RTD Pt100, analog signals (0/4-20 mA, 0-10 V), and infrared sensors.
Flexible Outputs: Up to 5 digital outputs (relay, triac, SSR drive) and 1 analog output (0/4-20 mA or 0-10 V) for control or retransmission.
Additional Functions: Equipped with a built-in timer, start-up function, and storage capability for up to two setpoints selectable via keypad or digital input.
Serial Communication: RS485 port with Modbus RTU or JBUS protocol for integration with SCADA or PLC systems.
Ergonomic Design: IP65 protected front panel, clear dual LED display and easy-to-use keypad.
Safety and Reliability: Heater failure alarm feature with current transformer, keypad and output lockout to prevent unwanted operation.

Applications

ASCON X3 is ideal for use in a variety of industry sectors, including:

Food and Beverage Industry: Temperature control in cooking, pasteurization and cooling processes.
Chemical and Petrochemical Industry: Temperature control of reactors and distillation processes.
Plastics and Rubber Industry: Temperature control in extruder and molding machines.
helgem.com.tw
HVAC and Cooling Systems: Temperature regulation in heating and air conditioning systems.
Laboratory and Research: Applications that require high precision temperature control.

Specifications

Dimensions: 48 x 96 x 110 mm (1/8 DIN)
Main Inputs: Thermocouple, RTD Pt100, 0/4-20 mA, 0-10 V, mV
Additional Input: Remote Setpoint (0/4-20 mA or 0-10 V)
Digital Outputs: Up to 4 (relay, triac, SSR drive)
Analog Outputs: 0/4-20 mA or 0-10 V (control or retransmission)
Serial Communication: RS485 Modbus RTU/JBUS (isolated)
Operating Voltage: 100-240 VAC or 24 VAC/VDC
Power Consumption: Max. 6 VA
Operating Temperature: 0-50°C
Operating Humidity: 5-95% RH without condensation
Front Panel Protection: IP65
