Sale!

Original price was: Rp 26.700.000.Current price is: Rp 26.592.000.

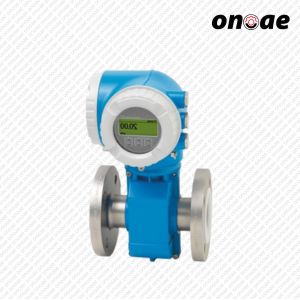

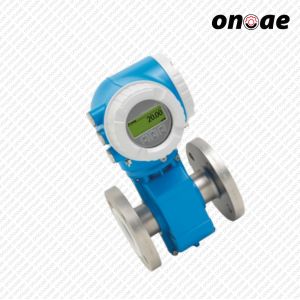

Flow Measuring Device A341-28

Minimum Order: 1 units

Lead Time: 12 weeks

Product Note:

No product notes available.

SKU: FLOWMEASURINGDEVICEA341-28 Category: Tags: , ,

Available on backorder

Contact us

Description

Description of Flow Measuring Device A341-28

A 341-28 is an electronic flow measuring device from VSE, designed to process and display signals from two channels of rotary pulse-based flow meters (such as gear or turbine flow meters with incremental encoder or proximity signals) simultaneously. The unit is packaged in a compact 96 × 48 mm panel housing with IP65 protection, suitable for use in industrial environments.

Features

  • 2 independent pulse input channels (1/2 or quadrature signals A, /A, B, /B), supporting frequencies from 0.01 Hz to 1 MHz per channel.
  • Flexible measurement modes: single channel, sum, differential, ratio, and percent deviation.
  • Linearization: can perform flow curve linearization to improve accuracy throughout the range.
  • 5 sets of programmable parameters: easy change of setpoint or measurement configuration.
  • 14-bit analog output: 0/4…20 mA, 0…10 V or ±10 V with response time <1 ms.
  • 4 limit switch transistors: fast output for alarm or shutdown control.
  • Program via RS-232: easy configuration via PC/Laptop.
  • 24 VDC/120 mA encoder supply: supports direct sensor without external power.
  • Panel design 96 × 48 mm, IP65: ideal for control cabinets and display panels.

Applications

  • Dual flow calculation: suitable for systems that require readings from two flow meters, e.g. input and output flow, or comparison/balance between two lines.
  • Industrial & manufacturing processes: liquid or gas ratio/mix measurement, dosage/ratio mixing control.
  • Filter or heat exchanger system monitoring: differential flow detection for fouling or clogging indications.
  • Automation & PLC systems: analog outputs and limit switches suitable for automatic control integration.
  • Laboratory & calibration: evaluation of flow meter devices, calibration curves or validation of instrument performance.

Specifications

  • Model A 341-28 Evaluation Electronics
  • 2-channel, 1, 2- or 4-track Pulse Input (A, /A, B, /B)
  • Input Frequency 0.01 Hz – 1 MHz per channel
  • Measurement Modes Single, Sum, Differential, Ratio, Deviation %
  • Linearization Adjustable per channel
  • Set Parameters 5 independent data sets
  • 14-bit Analog Outputs: 0/4-20 mA, 0-10 V, ±10 V; time <1 ms
  • Output Limitations 4 × transistor switches, fast response
  • Programming interface RS-232 communication
  • Encoder Power Supply 24 VDC/120 mA per channel
  • Dimensions & Protection Panel mount 96 × 48 mm, IP65 enclosure
