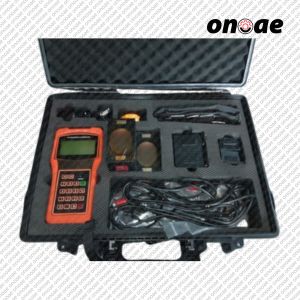

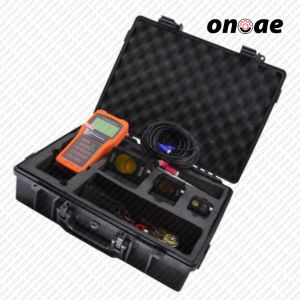

Flowmasonic WUF 100 J Portable Ultrasonic Flowmeter is a portable transit-time ultrasonic flowmeter With clamp-on transducers for non-invasive liquid measurement.
Flowmasonic WUF 100 J Portable Ultrasonic Flowmeter is a portable transit-time ultrasonic flowmeter With clamp-on transducers for non-invasive liquid measurement. Based on the microprocessor, the field programmable flow measurement technique allows no interruption to the process flow and has low installation costs.
| Measuring principle | Transit time difference | |
| Pipe Size | S Type : 15mm~65mm(1/2″~2.5″) M | |
| Type : 80mm~250mm(3″~10″) | ||
| L Type : 300mm~1000mm(12″~40″) | ||
| Pipe Material | Cast Iron,Stainless steel,Ductile Iron, Copper, PVC,Aluminum,Asbestos, Fibergiass.Etc | |
| Liner Material | Tar Epoxy, Rubber,Mortar, Polypropylene, Polystyrol, Polystyrene, polyester, Ebonite Poiyethylene, Tefion.Etc | |
| Display | 4 Line LCD with illumination | |
| Flowrate | 5 digit with decimal point | |
| Totalizer | 8 digit, Forward, Reverse & Net values | |
| Engineer unit | M3,Liter,US Gallon,Imperial Gallon, Million Gallon,Cubic Feet US Barrels Imperial Barrels,Oil Barrel | |
| Time Unit | Second,Minute,Hour,Day | |
| Other | Velocity,Date,Time,Signal condition | |
| Accuracy | +-1%~+/-2% value of reading | |
| 2 +40.5% Value of reading(online calibration) | ||
| Repeatability | +/-0.2% value of reading | |
| Keypad | 18 Key with tactile action | |
| Response time | Less than 1 second | |
| Flou Velocity | 0.01~#/-12m/s | |
| Resolution | 0.0001m/s | |
| Ambient Temperature | -40 to +60 °C | |
| Ambient Humidity | 90% RH or Less | |
| Builtin Battery | Ni-MH Battery | |
| Operation Time | >10 Hours | |
| Charger | 90~260Vac 50/60 Hz,8-12 Hr charging | |
| Data Storage | Operation parameters and totalization | |
| Data are stored by EEPROM for more than 10 years | ||
| Data Logger | 64 data include flowrate,totalizen,time,date | |
| Output | Pulse (Open collector) | |
| Alamr | High/Low with buzzer | |
| Power consumption | Less than 2W | |
| Dimension | 210 * 90 * 30mm | |
| Weight | 8 Kg(17.6 Lbs) | |
| Enclosure | IP65 | |
