GUIDE CYLINDER STG-MG-40-25-T2H-D

Minimum Order: 1 units

Lead Time: 6 weeks

Product Note:

No product notes available.

SKU: GUIDECYLINDERSTG-MG-40-25-T2H-D Category: Tags: , ,

Available on backorder

Description

Description of GUIDE CYLINDER STG-MG-40-25-T2H-D

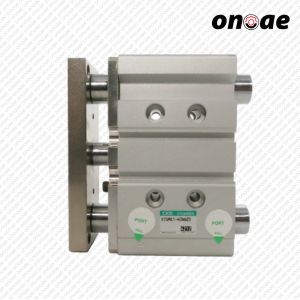

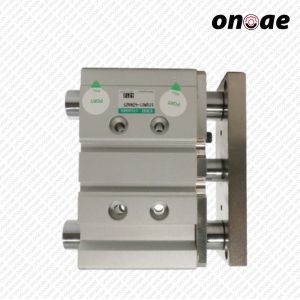

The STG-MG guide cylinder is a double-acting pneumatic cylinder with two guided rods, designed to provide high stability against lateral loads. Model STG-MG-40-25-T2H-D has a Ø 40 mm bore, 25 mm stroke and metal-bush bearings, making it suitable for applications with high side forces and high precision requirements.

Features

  • High lateral load: metal-bush bearing and reinforced guide structure provide resistance to side forces
  • Environmentally friendly & lightweight: material-saving aluminum body, no lubricating fluid inside.
  • Easy to maintain: piston shaft installation using only an Allen wrench, without special tools
  • Flexible porting options: sensor mounting in both directions, compatible with various switches.

Applications

  • Parallel drives for press, punch, or fixturing circuits with high lateral forces
  • Indexing tables and conveyors that require precision shifting without rocking
  • Mechanical robotic assembly such as pushers or transfer tables
  • Packaging systems or compact packing equipment with long shear forces

Specifications

  • Model STG-MG-40-25-T2H-D
  • Bore Ø 40 mm
  • Stroke 25 mm (standard; can be customized in 5 mm increments)
  • Type Double-acting, single rod guided cylinder
  • Bearings Metal bush bearings (guide rods)
  • Maximum Working Pressure 1.0 MPa (10 bar), minimum pressure 0. 15 MPa
  • Proof Pressure 1.6 MPa (16 bar)
  • Port Size Rc 1/8 or Rc 1/4 depending on variant
  • Piston Speed 50-500 mm/s (for Ø 40)
  • Environmental Temperature -10°C…+60°C
  • Cushion Rubber pads available
  • Lubrication Not required; if required use ISO VG32
