Specifications

Commercial data

• Item number 1679427
• Packing unit 1 pc
• Minimum order quantity 1 pc
• Product key BF7ABA
• Catalog page Page 565 (C-2-2019)
• GTIN 4017918168865
• Weight per piece (including packing) 117.1 g
• Weight per piece (excluding packing) 114.9 g
• Customs tariff number 85366990
• Country of origin CN

Technical data

• General For HEAVYCON-ADVANCE housings of B16 type and HEAVYCON housings of B16 and B32 types
• General Connectors may be operated only when there is no load/voltage.

Mounting

• To ensure correct use, installation in housing with IP54 protection or better is required

Assembly note

• Use wire end protection (screw connections do not have wire protection)

Product properties

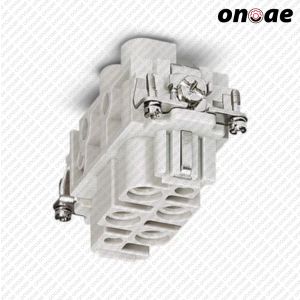

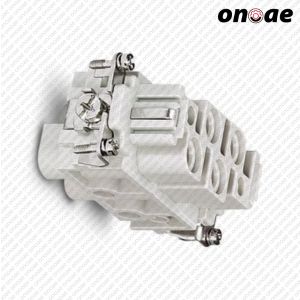

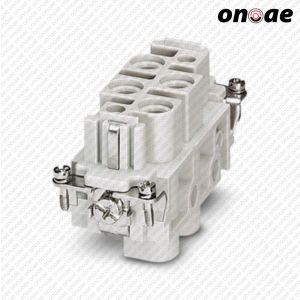

• Product type Contact insert with a fixed no. of positions
• Series HC-K

Application Power

• Type B16
• B32
• Number of positions 4
• Connection profile 4+PE
• Contact numbering 1 – 4
• No. of power contacts 4
• No. of control contacts 0
• Contact material type turned
• Screwdriver blade 0.8 x 4.5 mm (power contacts)

Data management status

• Article revision 05
• Insulation characteristics
• Overvoltage category III
• Degree of pollution 3

Dimensions

• Width 34 mm
• Height 44.2 mm
• Length 84.5 mm
• Drill hole distance, horizontal 77.5 mm
