onoae

Sale!

Original price was: Rp 35.000.000.Current price is: Rp 31.281.000.

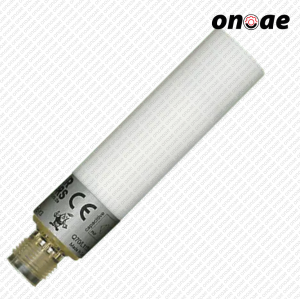

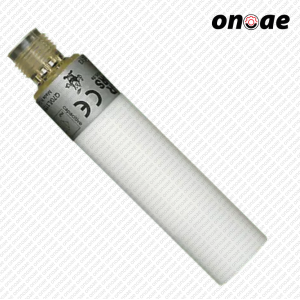

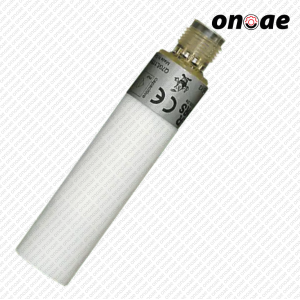

Rechner Sensors KAS-80-18 Proximity Sensor

Minimum Order: 20 units

Lead Time: 14 weeks

Product Note:

No product notes available.

Available on backorder

Description

Rechner Sensors KAS-80-18 Proximity Sensor

Rechner Sensors KAS-80-18 Proximity Sensor is a type of sensor used to detect the presence of an object without direct physical contact.

This sensor works on the principle of capacitance, where changes in capacitance between the sensor and the approaching object will produce an electrical signal.

Specifications

  • Operating distance Sn: 5 mm
  • Operating distance min./max. adjustable: 1…8 mm
  • Electrical version: 4-pin DC
  • Output: Antivalent (NO + NC)
  • Type: PNP KAS-80-18-A-D18-PTFE-Y3-1-HP
  • Art.-No.: 811 160
  • Operating voltage (UB): 10…35 V DC
  • Operating current (Ie): 2 x 0…250 mA
  • Voltage drop max. (Ud): < 2.0 V
  • Permitted residual ripple max.: 10%
  • No-load current (Io): Typ. 15 mA
  • Frequency of operating cycles max.: 100 Hz
  • Permitted ambient temperature: -25…+70° C
  • LED-display: Yellow
  • Protective circuit: Built-in
  • Degree of protection IEC 60529: IP 67
  • Norm: EN 60947-5-2
  • Connection: Flange connector M 12 x 1
  • Housing material: PTFE (FDA 21 CFR 177.1550)
  • Active surface: PTFE (FDA 21 CFR 177.1550)

Applications

  • Factory: Detect components on production lines, measure liquid levels in tanks, and control machine movements.
  • Electronic Equipment: Detect gestures to activate screens, replacing physical buttons with touch buttons.
  • Smart Homes: Detects the presence of people to automatically turn on lights, automatically open doors.
  • Robots: Helps robots detect surrounding objects and avoid them.
