Sale!

Original price was: Rp 84.900.000.Current price is: Rp 84.010.000.

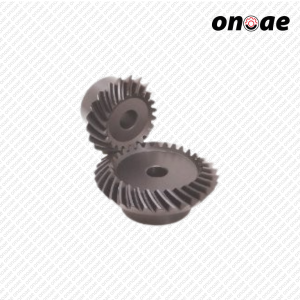

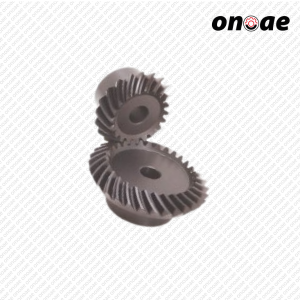

Spiral Bevel Gear – KHK SBS2.5-4515R

Minimum Order: 1 units

Lead Time: 6 weeks

Product Note:

No product notes available.

SKU: KHK SBS2.5-4515R Category: Tags: , ,

Available on backorder

Contact us

Description

Spiral Bevel Gear – KHK SBS2.5-4515R  a spiral bevel gear that is intended to transfer power between intersecting shafts (often at a 90° angle) smoothly, effectively, and with the least amount of vibration possible. Compared to straight bevel gears, it operates more quietly and has a greater torque capacity thanks to its spiral-shaped teeth, which engage gradually.

Features

  • Power is transmitted smoothly, silently, and effectively by spiral teeth.
  • built of long-lasting, high-strength S45C carbon steel.
  • tooth surfaces that have been induction-hardened (50–60 HRC) for superior wear resistance.
  • For light corrosion protection, apply a black oxide coating on non-tooth surfaces.
  • high level of production accuracy, satisfying Grade 4 requirements of JIS B 1704.

Applications

  • Used for angular power transmission (typically 90°) in industrial machinery.

  • Suitable for gearboxes, conveyors, factory equipment, and auxiliary drive systems.

  • Commonly used in automotive differentials and robotic drive systems.

Specifications

  • SBS2.5-4515R is the model.
  • Module: 2.5
  • There are forty-five teeth.
  • 3:1 is the gear ratio.
  • Diameter of pitch: 112.5 mm
  • Diameter outside: ±113.32 mm
  • Direction of spiral: right-hand
  • Shaft hole bore: 15 mm
  • 20 mm is the width of the face.
  • Length overall: 38.25 mm
