Sale!

Original price was: Rp 43.550.000.Current price is: Rp 43.350.000.

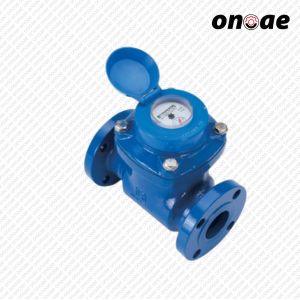

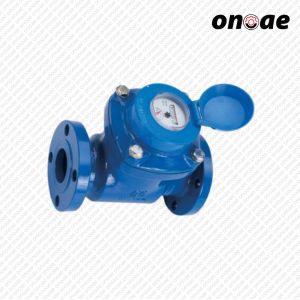

Turbine Meters WJ Series

Minimum Order: 1 units

Lead Time: 8 weeks

Product Note:

No product notes available.

SKU: TURBINEMETERSWJSERIES Categories: , Tags: , ,

Available on backorder

Contact us

Description

Description of Turbine Meters WJ Series

The WJ-Series is a dry-register totalizer type mechanical turbine flow meter, featuring an epoxy coated cast iron casing, available in sizes DN50-DN200 (2?-8?). Designed for measurement and totalization of liquid flow into the system without the need for direct electrical power.

Features

  • Dry-register non-resettable: hermetically sealed mechanical counter, leak and tamper resistant.
  • Epoxy coated cast iron body for corrosion resistance & industrial pressure.
  • Compact inline with ANSI 150-lb flange allows easy installation on standard pipe
  • Access pulser reed switch (dry contact) for remote pulse output, suitable metering & control systems
  • Magnetic horizontal rotor + vertical shaft with jewel bearings and tungsten steel shaft – increased durability and accuracy
  • Top access seals and security seals – facilitate inspection but remain secure from manipulation.

Applications

  • Water & wastewater treatment – totalization of cooling, feed and waste water flows
  • Pacing metering pumps – provide pulse signals for chemical dosing
  • Direct industrial fluid monitoring – stable and energy efficient when electricity is scarce
  • Cooling water loops – in HVAC systems, boiler feed, and chiller monitoring.

Specifications

  • Meter Body : Cast Iron
  • Register Plate: ABS plastic
  • Drive Magnet: Alnico
  • Turbine: Plastic
  • Turbine Shafts: Tungsten steel
  • Bearings: Jewel
  • Flanges: 150 lb ANSI drilling
  • Maximum Pressure: 150 psi (10 bar)
  • Maximum Temperature: 105oF (40oC)
  • Accuracy above transition: +-2% of reading
  • Accuracy below transition: +- of reading
  • Reed switch : 100 Ma @24Vac/dc
