Name: Vcikers Piston Pump PVB 10-FRSY-30-CMC-11-JA | onoae
SKU: VPP10-FRSY-30-CMC-11-JA
Price: 47560000 IDR
Availability: BackOrder

Description

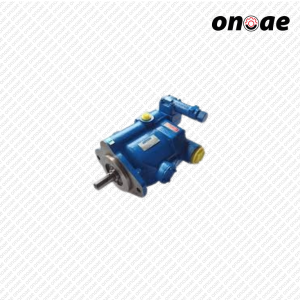

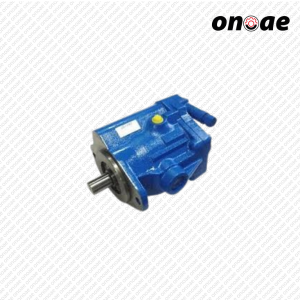

Vcikers Piston Pump PVB 10-FRSY-30-CMC-11-JA

Vcikers Piston Pump PVB 10-FRSY-30-CMC-11-JA is an axial piston pump with a swashplate design and variable displacement. This pump is well known in the industrial world for its high efficiency, long service life, and low noise level when operating in hydraulic systems.

Features

Features

1. Variable pump with axial piston rotary group in swash plate design for hydrostatic drives in open circuit.

2. The flow is proportional to the drive speed and displacement.

3. The flow can be infinitely varied by adjusting the swash plate angle.

4. 2 drain ports

5. Excellent suction performance

Applications

General Applications:

Industrial Machinery: Used in various types of industrial equipment, including machine tools, presses, and material handling equipment.
Construction Machinery: Found in construction vehicles and heavy equipment, such as excavators, loaders, and road mixers.
Agriculture: Used in agricultural machinery.
Hydraulic Systems: The pump’s primary function is to power hydraulic systems, making it suitable for any application that requires a source of high-pressure fluid.
Marine and Ship Machinery: Its compact design and high performance make it suitable for use in marine applications.

Technical Specifications (based on the model code):

The model number provides key details about the pump’s configuration:

PVB: Indicates a variable displacement axial piston pump.
10: The size of the pump, which corresponds to a geometric displacement of $21.1 c m^{3} / r$ ( $1.29 i n^{3} / re v$ ).
FRSY: A combination of features that includes a front porting arrangement (F), a clockwise rotation (R), a keyed shaft (S), and a pressure compensator with adjustable displacement control (Y).
30: Denotes the design number of the pump.
CMC: Refers to the control type. In this case, a pressure compensator with adjustable displacement control, allowing the pump to match pressure and flow demands. The “CM” part of the code likely refers to a pressure compensator with an adjustment range of 17 to 100 bar (250 to 1500 psi).
11: This is the control design number.
JA: The mounting and porting code, specifying the type of mounting flange and porting connections.

Specifications

General Specifications

Pump Type: Variable displacement axial piston pump.
Series: PVB series.
Operation: Designed for open-circuit hydraulic systems.

Performance Specifications

Geometric Displacement: $21.10 c m^{3} / r$ ( $1.29 i n^{3} / re v$ ).
Maximum Shaft Speed: $1800 r / min$ .
Maximum Outlet Pressure:
- With anti-wear hydraulic oil: $210 ba r$ ( $3000 p s i$ ).
- With water-glycol or water-in-oil emulsion: $140 ba r$ ( $2000 p s i$ ).
