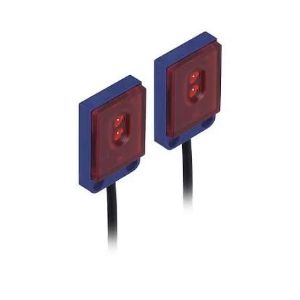

Wenglor E1FL66VD Through Beam Sensor

Wenglor E1FL66VD Through Beam Sensor are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input. The sensor switches as soon as an object interrupts the laser light, red light, or infrared light.

Features at a Glance

Integrated output
Recognition of small parts
Rear panel mounting

Electrical Data
Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

Features

Integrated output
Recognition of small parts
Rear panel mounting

Applications

Dimensions specified in mm (1 mm = 0.03937″)

1 = Emitter / ReceiverScrew

M2 = 0,3 Nm

Specifications

Optical Data
Range	1,000 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	30 °

Electrical Data
Sensor Type	Receiver
Supply Voltage	10 … 30 V DC
Current Consumption (Ub = 24 V)	< 30 mA
Switching Frequency	500 Hz
Response Time	1 ms
Temperature Drift	< 10 %
Temperature Range	-25 … 60 °C
Switching Output Voltage Drop	< 2.5 V
Switching Output/Switching Current	100 mA
Residual Current Switching Output	< 50 µA
Short Circuit and Overload Protection	yes
Reverse Polarity Protection	yes
Protection Class	III

Mechanical Data
Housing Material	Plastic
Degree of Protection	IP67
Connection	Cable, 3-wire, 2 m

Output
PNP NC	yes
