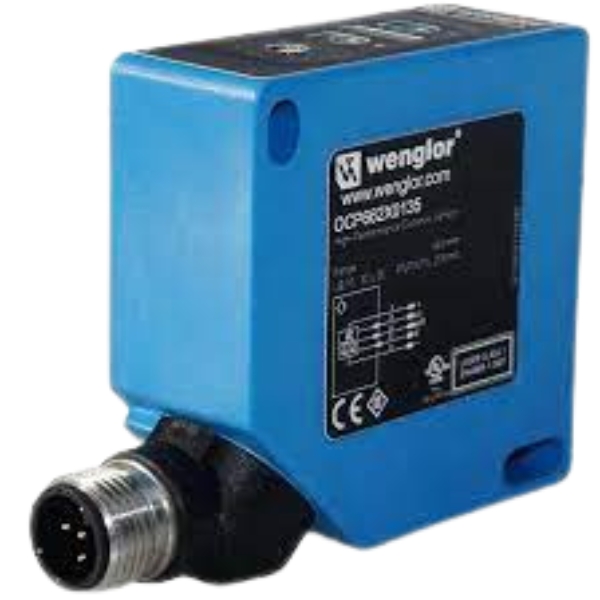

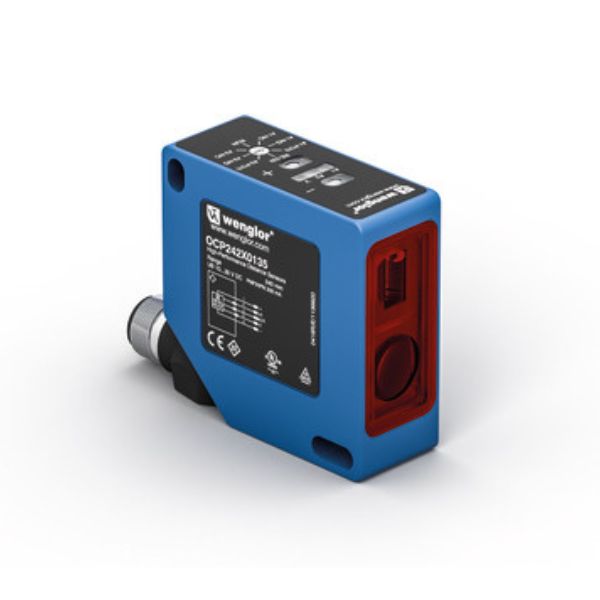

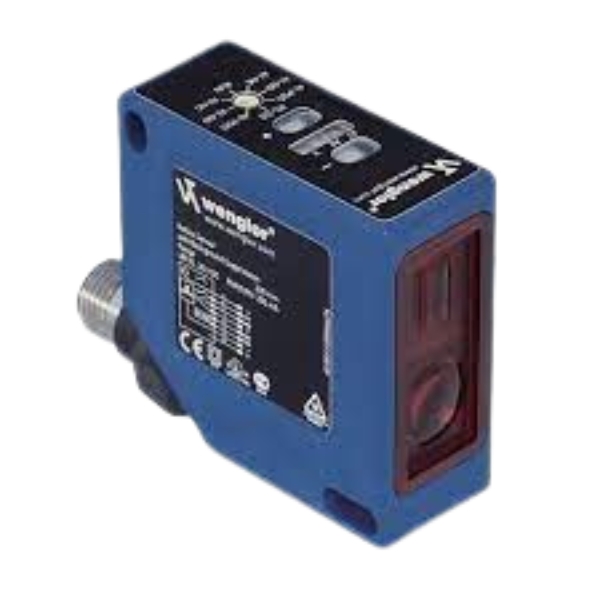

Wenglor OCP662X0080 Sensor High Precision

Wenglor OCP662X0080 Sensor High Precision these sensors work with a high-resolution CMOS line and DSP technology and calculate the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color, and brightness. Two independent switching outputs are available, at which two switching thresholds and one on-delay or off-delay time can be set in 10 ms increments. Sensor functions can be activated and values can be output via the RS-232 interface.

Wenglor OCP662X0080 Sensor High Precision Features at a Glance

CMOS line array
Highly accurate switching distance
Minimal switching hysteresis
Specially coated optics
Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 50 mA
Switching Frequency 100 Hz
Response Time < 5 ms
On-/Off-Delay (RS-232) 0 … 1 s
Temperature Drift < 50 µm/K
Temperature Range -25 … 60 °C
Number of Switching Outputs 2
Switching Output Voltage Drop < 1.5 V
Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Teach Mode HT, VT, TP
Baud Rate 38,400 Bd
Protection Class III
FDA Accession Number 1120728-000

Features

CMOS line array
Highly accurate switching distance
Minimal switching hysteresis
Special coated optics

Applications

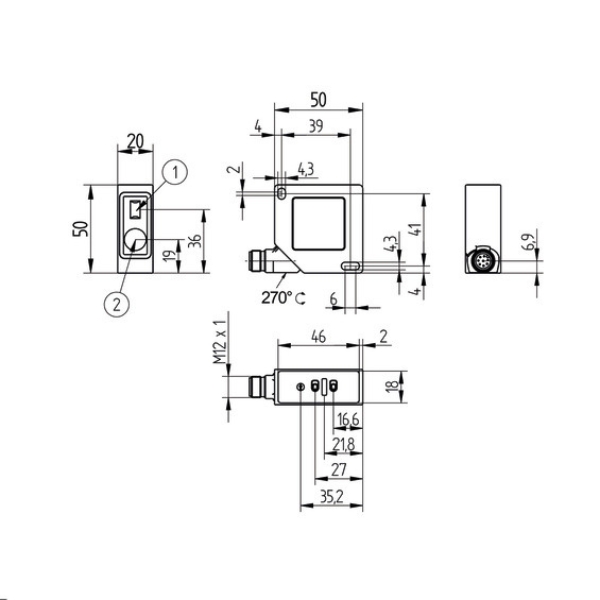

07 = Selector Switch
24 = Plus Button
25 = Minus Button
03 = Error Indicator
01 = Switching Status Indicator

Specifications

Optical Data
Range	660 mm
Setting Range	60 … 660 mm
Switching Hysteresis	< 1 %
Light Source	Laser (red)
Wavelength	655 nm
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	1
Max. Ambient Light	10,000 Lux
Light Spot Diameter	see Table 1

Mechanical Data
Setting Method	Teach-In
Housing Material	Plastic
Coated Optics	yes
Degree of Protection	IP67
Connection	M12 × 1; 8-pin

Output
Error Output	yes
PNP NO	yes
RS-232 Interface	yes

Adjustable parameters
Output	Error Output Push-pull NPN PNP
Circuit	NC NC/NO NO
Other parameters	Off-delay On-delay Exposure time Switching hysteresis Emitted light Teach-in mode

Table 1
Detection Range	60 mm	660 mm
Spot Size	0,5 × 1,2 mm	2 × 5,5 mm

Description

Wenglor OCP662X0080 Sensor High Precision

Wenglor OCP662X0080 Sensor High Precision Features at a Glance

CMOS line array

Highly accurate switching distance

Minimal switching hysteresis

Specially coated optics

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 50 mA
Switching Frequency 100 Hz
Response Time < 5 ms
On-/Off-Delay (RS-232) 0 … 1 s
Temperature Drift < 50 µm/K
Temperature Range -25 … 60 °C
Number of Switching Outputs 2
Switching Output Voltage Drop < 1.5 V
Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Teach Mode HT, VT, TP
Baud Rate 38,400 Bd
Protection Class III
FDA Accession Number 1120728-000

Specifications

Optical Data
Range	660 mm
Setting Range	60 … 660 mm
Switching Hysteresis	< 1 %
Light Source	Laser (red)
Wavelength	655 nm
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	1
Max. Ambient Light	10,000 Lux
Light Spot Diameter	see Table 1

Mechanical Data
Setting Method	Teach-In
Housing Material	Plastic
Coated Optics	yes
Degree of Protection	IP67
Connection	M12 × 1; 8-pin

Output
Error Output	yes
PNP NO	yes
RS-232 Interface	yes

Adjustable parameters
Output	Error Output Push-pull NPN PNP
Circuit	NC NC/NO NO
Other parameters	Off-delay On-delay Exposure time Switching hysteresis Emitted light Teach-in mode

Table 1
Detection Range	60 mm	660 mm
Spot Size	0,5 × 1,2 mm	2 × 5,5 mm
