Wenglor OHD202A0103 Reflex Sensor

Product Note:

No product notes available.

Description

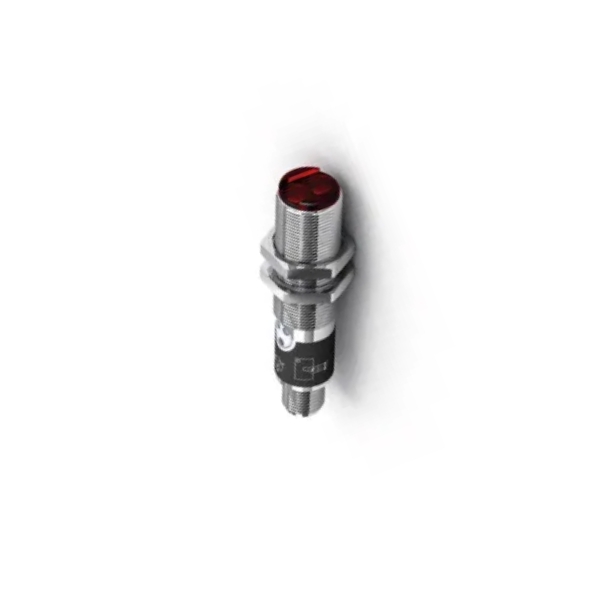

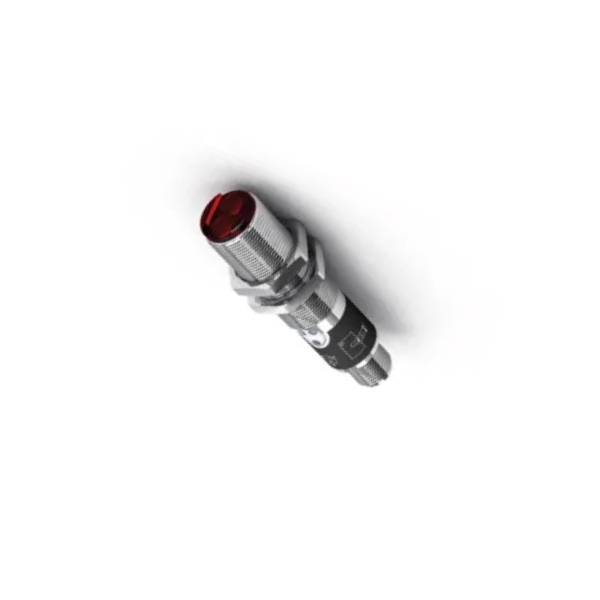

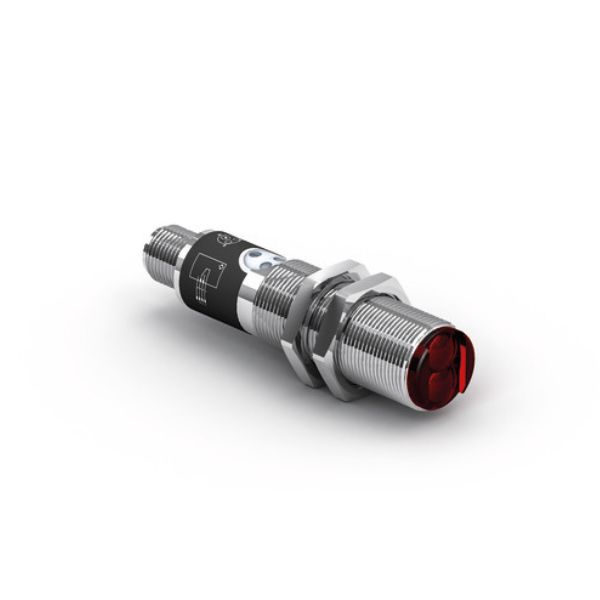

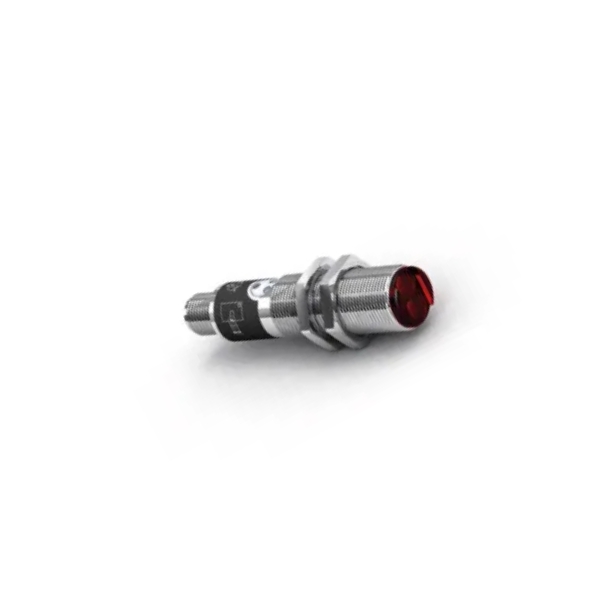

Wenglor OHD202A0103 Reflex Sensor

Wenglor OHD202A0103 Reflex Sensor these sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.

Wenglor OHD202A0103 Reflex Sensor Features at a Glance

  • Stainless steel housing
  • Adjustable switching distance
  • Electronic background suppression
  • Red light
  • Adjustable switching distance
  • Electronic background suppression
  • Red light
  • Stainless steel housing
  • Adjustable switching distance
  • Electronic background suppression
  • Red light
  • Stainless steel housing
  • These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.
  • Electrical Data
    Supply Voltage 10 … 30 V DC
    Current Consumption (Ub = 24 V) < 30 mA
    Switching Frequency 1,000 Hz
    Response Time 500 µs
    Temperature Drift < 5 %
    Temperature Range -25 … 60 °C
    Number of Switching Outputs 2
    Switching Output Voltage Drop < 2.5 V
    PNP Switching Output/Switching Current 200 mA

Features

  • Stainless steel housing
  • Adjustable switching distance
  • Electronic background suppression
  • Red light

Applications

B_BED_D_06.eps
05 = Switching Distance Adjuster
02 = Contamination Warning
01 = Switching Status Indicator

Specifications

Optical Data

Range200 mm
Setting Range35 … 200 mm
Switching Hysteresis < 5 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux

Electrical Data

Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 30 mA
Switching Frequency1,000 Hz
Response Time500 µs
Temperature Drift< 5 %
Temperature Range-25 … 60 °C
Number of Switching Outputs2
Switching Output Voltage Drop< 2.5 V
PNP Switching Output/Switching Current200 mA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
Protection ClassIII

Mechanical Data

Setting MethodPotentiometer
Housing MaterialStainless Steel
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Output

PNP NO/NC antivalentyes

Adjustable parameters

CircuitNC
NC+NO
NO

Table 1

Detection Range100 mm200 mm
Light Spot Diameter5 mm12 mm

Downloads

Datasheet : Wenglor OHD202A0103 Reflex Sensor with Background Suppression
