Description

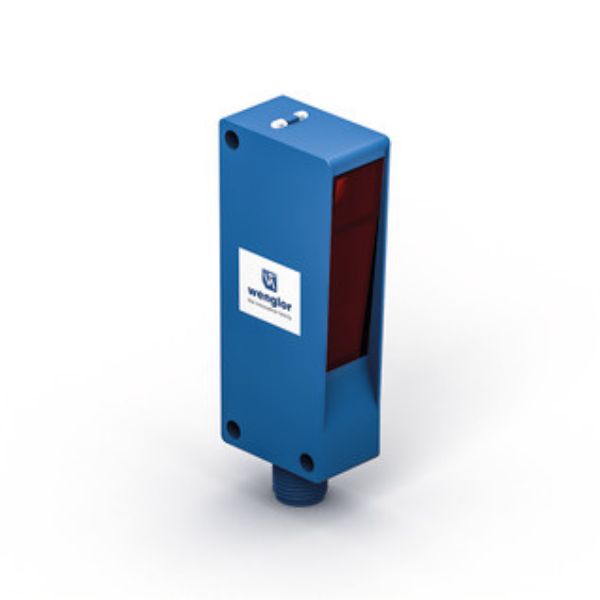

Wenglor P1NH601 Reflex Sensor Background Suppression

Wenglor P1NH601 Reflex Sensor Background Suppression The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.

Wenglor P1NH601 Reflex Sensor Background Suppression

Reflex sensors with background suppression detect and measure objects contactless and detect them in front of any defined background. They work with red light, infrared light, blue light, or laser light. Thanks to the principle of angle measurement, the color, shape, and object surface have no influence on the switching behavior of the sensors.

Features

  • Condition monitoring
  • IO-Link 1.1
  • Reliably detect objects against any background
  • Large detection range

Applications

B_BED_A_28.eps
30 = Switching Status/Contamination Warning
05 = Switching Distance Adjuster
68 = supply voltage indicator

Specifications

Optical Data

Range1,200 mm
Setting Range100 … 1,200 mm
Switching Hysteresis < 10 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux

Electrical Data

Supply Voltage10 … 30 V DC
Supply Voltage with IO-Link18 … 30 V DC
Current Consumption (Ub = 24 V)< 30 mA
Switching Frequency500 Hz
Switching Frequency (interference-free mode)250 Hz
Response Time1 ms
Response time (interference-free mode)2 ms
Temperature Drift< 10 %
Temperature Range-40 … 60 °C
Switching Output Voltage Drop< 2 V
Switching Output/Switching Current100 mA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
InterfaceIO-Link V1.1
Protection ClassIII

Mechanical Data

Setting MethodSingle-turn
Housing MaterialPlastic
Degree of ProtectionIP67/IP68
ConnectionM12 × 1; 4-pin
Optic CoverPMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1)2,028.3 a

Output

PNP NO/NC antivalentyes
IO-Linkyes

Adjustable parameters

OutputPush-pull
NPN
PNP
CircuitNC
NO
Inactive
Error output
NC+NO
Other parametersOff-delay
On-delay
Mode of operation
Hysteresis
Switching point
Emitted light

Table 1

Detection Range100 mm600 mm1200 mm
Light Spot Diameter14 mm18 mm30 mm
