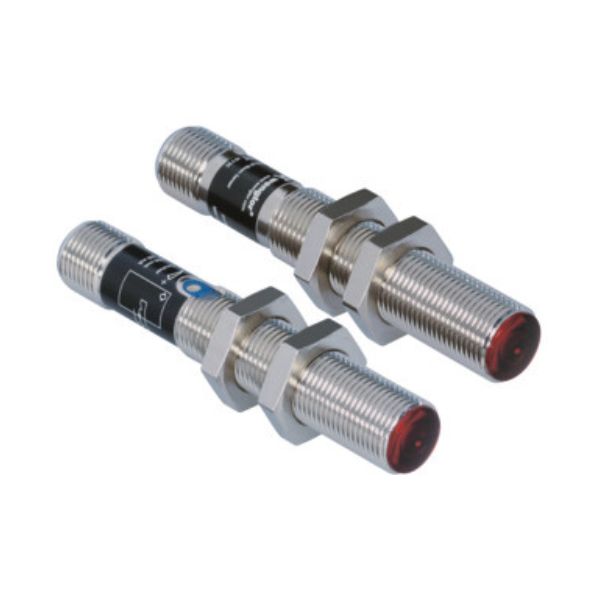

Wenglor SO953N Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor SO953N Through Beam Sensor

Wenglor SO953N Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Optical Data

  • Range: 5000 mm
  • Light Source: Red Light
  • Service Life (T = +25 °C) : 100000 h
  • Opening Angle: 8 °
  • Electrical Data
  • Sensor Type: Emitter
  • Supply Voltage: 10…30 V DC
  • Current Consumption (Ub = 24 V) : < 40 mA
  • Temperature Drift: < 10 %
  • Temperature Range : -10…60 °C
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Mechanical Data
  • Housing Material: CuZn, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection : M12 × 1; 4-pin

Mechanical Data

  • Housing Material: CuZn, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin

Features at a Glance

  • Red light
  • Test input

Features

  • Red light
  • Test input

Applications

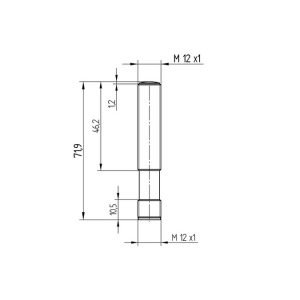

Dimensions specified in mm (1 mm = 0.03937″)
Wrench Size

Specifications

Optical Data

Range5,000 mm
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Opening Angle8 °

Electrical Data

Sensor TypeEmitter
Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 40 mA
Temperature Drift< 10 %
Temperature Range-10 … 60 °C
Reverse Polarity Protectionyes
Protection ClassIII

Mechanical Data

Housing MaterialCuZn, nickel-plated
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Downloads

Datasheet : Wenglor SO953N Through Beam Sensor
