Sale!

Original price was: Rp 310.000.000.Current price is: Rp 286.656.000.

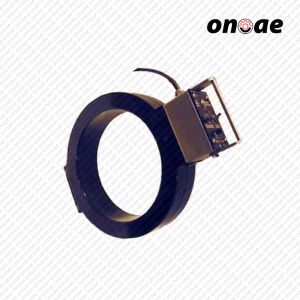

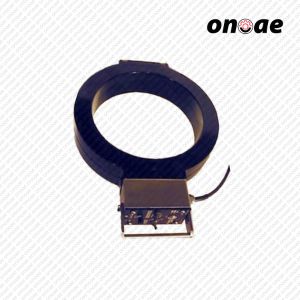

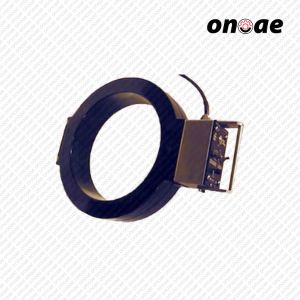

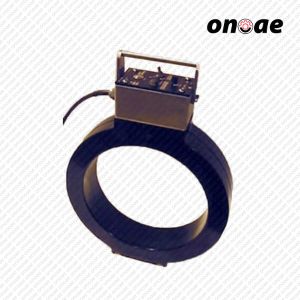

Western Instrument WP-14-DVR-K Medium Duty AC/DC

Lead Time: 10 weeks

Product Note:

No product notes available.

SKU: WIWP14DVRMD Category: Tags: , ,

Available on backorder

Contact us

Description

Western Instruments WP-Series menawarkan output 7000 Amp DC setengah gelombang dan 4000 Amp AC, dengan fitur unggulan opsi demagnetisasi yang memungkinkan pembalikan dan peluruhan magnetisasi DC. Kumparan ini tersedia dalam output AC dan dapat ditambahkan output DC tetap atau variabel untuk kontrol medan yang lebih presisi, mencegah kejenuhan bagian. Kumparan WP-Series tersedia dalam 4 ukuran ID: 8”, 10”, 12”, dan 14”, dengan opsi demagnetisasi DC. Untuk aplikasi bor, gunakan Kumparan Pipa Bor Seri-WS.

Features

  • 0 to 7500 Amp Turns DC Output
  • Adjustable Polarity (+/-)
  • Energize Button Activation
  • Removable Foot Switch
  • Operator Instructions
  • Calibration Certicate

Applications

Western Instrument WP-14-DVR-K Medium Duty AC/DC Coil berfungsi untuk menguji dan memeriksa integritas bahan menggunakan metode partikel magnetik. Dengan output AC 4000 Amp turns pada 230VAC dan 50Hz, kumparan ini menghasilkan medan magnet yang diperlukan untuk magnetisasi bahan, memungkinkan deteksi cacat permukaan. Selain itu, kemampuan DC-nya memungkinkan operator untuk melakukan demagnetisasi, menjadikannya alat yang efektif dalam aplikasi pengujian non-destruktif.

Specifications

ModelSize In (kg)Weight Lbs ( mm)Amperes & VoltageAmp Turns / Gauss
WP-88″ (201 mm)11lbs (5.5kg )13 Amps 115V / 60Hz3250 AC
WP-8K8″ (201 mm)11lbs (5.5kg )6.5 Amps 230V 50Hz3250 AC
WP-8D8″ (201 mm)13lbs (6kg)13 Amps 115V / 60Hz3250 AC 6000 DC
WP-8DK8″ (201 mm)13lbs (6kg)6.5 Amps 230V 50Hz3250 AC 6000 DC
WP-8DV8″ (201 mm)15lbs (7.5kg)13 Amps 115V / 60Hz3050 AC 0 to 6000DC
WP-8DVK8″ (201 mm)15lbs (7.5kg)6.5 Amps 230V 50Hz3050 AC 0 to 6000DC
WP-8DVR8″ (201 mm)17lbs (5.5kg)13 Amps 115V / 60Hz2875 AC +/- 0 to 6000DC
WP-8DVRK8″ (201 mm)17lbs (5.5kg)6.5 Amps 230V 50Hz2875 AC +/- 0 to 6000DC
WP-1010″ (254 mm)11lbs (5.5kg )15 Amps 115V / 60Hz3250 AC
WP-10K10″ (254 mm)11lbs (5.5kg )8 Amps 230V 50Hz3250 AC
WP-10D10″ (254 mm)12lbs (6kg)15 Amps 115V / 60Hz3050 AC 6000 DC
WP-10DK10″ (254 mm)12lbs (6kg)8 Amps 230V 50Hz3050 AC 6000 DC
WP-10DV10″ (254 mm)12lbs (6kg)15 Amps 115V / 60Hz3050 AC 6000 DC
WP-10DVK10″ (254 mm)12lbs (6kg)8 Amps 230V 50Hz3050 AC 6000 DC
WP-10DVR10″ (254 mm)15lbs (5.5kg)15 Amps 115V / 60Hz2,875 AC +/- 0 to 6000 DC
WP-10DVRK10″ (254 mm)15lbs (5.5kg)8 Amps 230V 50Hz2,875 AC +/- 0 to 6000 DC
WP-1212″ (305 mm)11lbs (5.5kg )16 Amps 115V / 60Hz3250 AC
WP-12K12″ (305 mm)11lbs (5.5kg )9 Amps 230V 50Hz3250 AC
WP-12D12″ (305 mm)12lbs (5.5kg)16 Amps 115V / 60Hz3250 AC 6000 DC
WP-12DK12″ (305 mm)12lbs (5.5kg)9 Amps 230V 50Hz3250 AC 6000 DC
WP-12DV12″ (305 mm)15lbs (5.5kg)16 Amps 115V / 60Hz3050 AC 0 to 6000DC
WP-12DVK12″ (305 mm)15lbs (5.5kg)9 Amps 230V 50Hz3050 AC 0 to 6000DC
WP-12DVR12″ (305 mm)15lbs (5.5kg)16 Amps 115V / 60Hz3050 AC +/- 0 to 6000DC
WP-12DVRK12″ (305 mm)15lbs (5.5kg)9 Amps 230V 50Hz3050 AC +/- 0 to 6000DC
WP-1414″ (355 mm)17lbs (8kg)18 Amps 115V / 60Hz2875 AC
WP-14K14″ (355 mm)17lbs (8kg)10 Amps 230V 50Hz2875 AC
WP-14D14″ (355 mm)17lbs (8kg)18 Amps 115V / 60Hz2875 AC 6000 DC
WP-14DK14″ (355 mm)17lbs (8kg)10 Amps 230V 50Hz2875 AC 6000 DC
WP-14DV14″ (355 mm)17lbs (8kg)18 Amps 115V / 60Hz2875 AC 6000 DC
WP-14DVK14″ (355 mm)17lbs (8kg)10 Amps 230V 50Hz2875 AC 6000 DC
WP-14DVR14″ (355 mm)17lbs (8kg)18 Amps 115V / 60Hz2,875 AC +/- 0 to 6000 DC
WP-14DVRK14″ (355 mm)17lbs (8kg)10 Amps 230V 50Hz2,875 AC +/- 0 to 6000 DC
