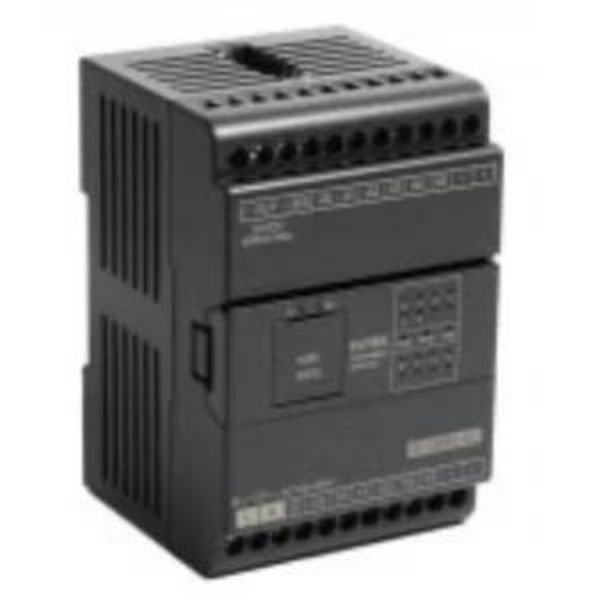

Fatek-B1-14M Main Unit

The FBs-PLC’s design incorporates a “System on Chip” (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrates powerful features such as a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs.

The FBs-PLC’s design incorporates a “System on Chip” (SoC) developed in-house by Fatek Corporation. The BGA chip consists of over 120,000 gates which integrates powerful features such as
a Central Processing Unit (CPU), Memory, Hardware Logic Solver (HLS), 5 high-speed communication
ports, 4 sets of hardware high-speed counters/timers, 4 axes of high-speed pulse outputs for NC
positioning control (with linear interpolation), 16 high-speed interrupts and captured inputs. The FBsPLC represents high functionality and reliability with exceptional value compared to other PLC’s in its class.

Features

  • 8 points 24VDC digital input (4 points 50 KHz, 4 points total 5 KHz)
  • 6 points relay output or transistor output (2 points 50 KHz)
  • Built-in 1-2 communication ports, left side is expandable 0-2 modules
  • Right side is expandable up to 80 I/O points

Applications

  • Basic Main Units (MA)
  •  Basic Main Units (MA/MB)
  •  Advanced Main Units (MC)
  •  NC Positioning Main Units (MN)

Specifications

Specification
B1-14MR
B1-14M(T/J)
Digital input
24VDC
High speed
50KHz
4 points (4-axis single phase or 2-axis A/B phase)
Medium speed
(Total 5KHz)
4 points
Low speed
Digital
output
Relay
AC/DC(2A)
6 points
Transistor
(5~30VDC)
High speed
50KHz (0.3A)
2 points(1-axis singlephase or A/B phase)
Low speed(0.5A)
4 points
Communication Port
Built-in
1 port (RS232 or USB*1) / 2 ports (RS232 + RS485) for B1-xxM◇25
Expandable
2 ports (except B1-xxM◇25)
Calendar
Special order
Built-in power supply
ZPOW14(AC power) or N/A(DC power)
Wiring mechanism
5mm European fixed terminal block

Downloads

Datasheet: Fatek-B1-14M Main Unit
