Description

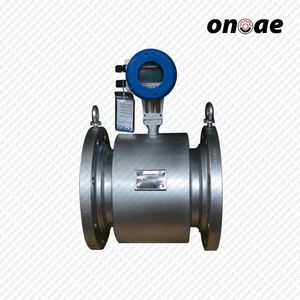

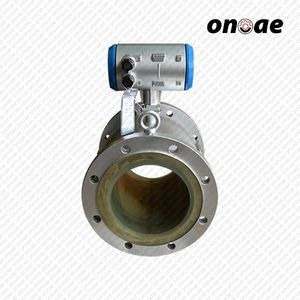

Flowma Flowmag WMAG30 Series Electromagnetic Flowmeter is basically a sensor or transducer that has the ability to generate a magnetic field in the form of an electrode. Which is reinforced with a coil (electric coil) around the pipe with the installation of electrodes located opposite on the right and left sides of the pipe body.

This Wmag30 electromagnetic flowmeter has a pretty good level of accuracy and can be up to 0.2% for certain models. Named inline flow meter because the installation method is done by cutting the pipe followed by installing a flange or thread.

Features

There are no moving sensor components so it is suitable for waste water and dirty water
The flowmag wmag30 flow meter has a fairly good accuracy of 0.5%
There are various types of pipe sizes from DN10 to DN 1800
Insertion installation types available
Connection can be Flange, Thread and wafer
Available in compact and remote or split types with cable lengths up to 100 m
Can be ordered using PN, ANSI and JIS as well as classes can be up to ANSI900 class.
Liner and electrode materials can be customized even for abrasive, corrosive water to food grade types
The unit reading system can be set directly on the converter to units of liters, cubic meters, gallons or others
Has a fairly good resistance to corrosive and abrasive fluids for mining.

Applications

Water Treatment Plants and Waste Water Treatment Plants
Chemical and Pharmaceutical Industry
Food and beverage industry
Mining, cement and mineral mate
Pulp and paper industry, Energy industry
Steel industry, Public Utilities

Specifications

Model		Tipe Compact, Tipe Remote
Size Range		DN10 DN2600
Electrode	Standart	Ti
	Option	Mo2TI, HC, HB, Pt, Ta, Ti,
Liner	Standart	Polyurethane
	Option	PTFE, PFA, Neoprene, Hard Rubber ( Conductive rubber : >DN100mm)
Electrode Model		Type Standard, Type Scraper (solid content: DN 50)
Medium		Conducting medium (solid content: 5%)
Conductivity		5 s/cm (water 20 s/cm)
Accuracy		0.5%RS. (0.2%RS For specials)
Repability		0.1%
Flow speed Range		0-12m/s
Temperature medium		Compact 90 C, Remote 180 C
Ambient Temperature		-40 65C
Operational Pessure		0.6 MPa 4.0 MPa, (Termasuk Super High Pressure)
Enclosure		IP65, IP67, (IP68 Remote)
		EX md II BT4
Output		4-20mA, Pulse/Frequency, Switch signal
Power Supply		85-220V AC; 24V DC
Disconnection Timing		Include
Blank Pipe Alarm		Include
Communication		RS485/Modbus, PROFIBUS DP, HART
Language Display		Simple Chinese, English, Others.
Flange Standart		GB9115, ANSI, JIS, Others
