Sale!

Original price was: Rp 48.100.000.Current price is: Rp 48.024.000.

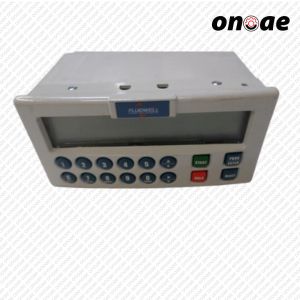

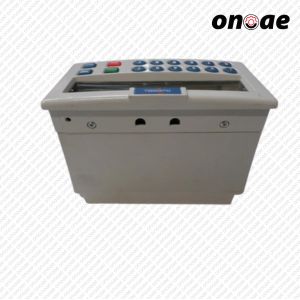

Fluidwell Batch Controller N410-P-CH-HB-IR-OR-PG-XX-ZB

Minimum Order: 1 units

Lead Time: 8 weeks

Product Note:

No product notes available.

SKU: FLUIDWELLBATCHCONTROLLERN410 Categories: , Tags: , ,

Available on backorder

Contact us

Description

Description of Fluidwell Batch Controller N410-P-CH-HB-IR-OR-PG-XX-ZB

The N410 series controller is a digital batch device designed for liquid/gas filling and dosing applications. It has the full model N410-P-CH-HB-IR-OR-PG-XX-ZB, which includes a numeric keypad, remote input, three outputs (2×relai + 1×transistor), and Modbus communication via RS-232/485. The case is panel mount DIN aluminum IP67 front & IP20 rear

Features

  • Numeric keypad & easy menu for preset and batch settings
  • Large backlit display shows current value, preset, batch process, switch status, and units.
  • Variable flowmeter input: reed, NPN/PNP/Namur, HTL/TTL/sine, active 8/12/24 V.
  • Automatic overrun correction for high accuracy.
  • No-flow alarm: if there is no flow after start, batch will be stopped & alarm activated.
  • Three configurable outputs: 2 heavy-duty relays (batch control/alarm/pulse) + transistor for PLC.
  • Modbus communication (optional RS-232/485) for monitoring & system integration.
  • Dual power inputs: 110-230 VAC or 24 VDC, as well as internal sensor supply 8.2/12/24 VDC

Applications

  • Liquid/gas filling systems such as IBC, drum, jerrycan.
  • Industrial dosing: chemicals, fuel, additives, waste water.
  • Dual flow control: sum, differential, or ratio between two sensors.
  • OEM panel & SCADA integration via Modbus.
  • Outdoor/panel applications due to IP67 protection on the front.

Specifications

  • Model N410-P-CH-HB-HB-IR-OR-PG-XX-ZB
  • Display Backlit LCD, displays batch, rate, total, indicator
  • Input Sensors Reed, NPN, PNP, Namur, HTL/TTL/sine, 8/12/24 V active pulse
  • Input Frequency Low to high speed (up to MHz)
  • Output 2 × heavy duty mechanical relay + 1 × transistor output
  • Communication Options RS-232 or RS-485 Modbus RTU
  • Power Supply 110-230 VAC or 24 VDC + sensor power supply 1, 2/3/8,2/12/24 V DC
  • Protection IP67 aluminum front panel / IP20 rear
  • Dimensions Standard DIN, panel mount (~96×48), ~144 mm thick
  • Additional Features Overrun correction, no-flow alarm, password protection menu
  • Housing Front panel aluminum & rear GRP
