Description

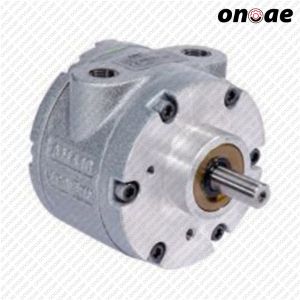

GAST Air Motor 4AM-NRV-22B
GAST Air Motor 4AM-NRV-22B offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application.
Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.
Specifications
Key Type: #3 Woodruff
Max Air Consumption: 78 cfm
( 132.52 m3h )
Max Power: 1.7 hp
( 1.27 kW )
Max Pressure: 7 bar
( 101.53 psi )
Max Sound Level: 87 dB(A)
Max Speed: 3000 rpm
Max Torque: 56 in-lb
( 6.33 N m )
Mount: FACE
Output Shaft Type: Keyed
Port Size and Type: 1/4″ NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.5 in
( 12.7 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 28 in-lb
( 3.16 N m )
Torque Max Speed: 36 in-lb
( 4.07 N m )
Vanes: 4
Applications
Mixing equipment
Conveyor drives
Pump drives
Food packaging
Pharmaceutical packaging
Hoists and winches
Hose reels
Fiberglass choppers
Tension devices
Turntables
Tire/wheel balancers
Features
Variable speed
Non-electrical sparking
Cool running
Compact and portable
Operate in all positions
Mounting flexibility
