Sale!

Original price was: Rp 60.900.000.Current price is: Rp 60.552.000.

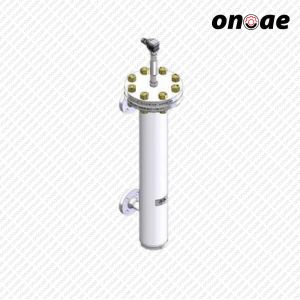

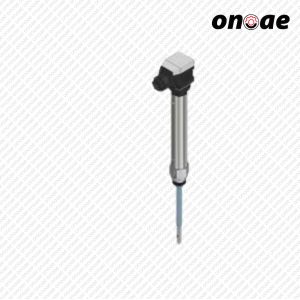

Level Probe EL030

Minimum Order: 1 units

Lead Time: 5 weeks

Product Note:

No product notes available.

SKU: LPEL030 Categories: , Tags: , ,

Available on backorder

Contact us

Description

Description Level Probe EL030

The purpose of the EL030 level probe is to monitor and regulate liquid levels, especially in steam boilers and other associated industrial applications. It works as a self-monitoring low water level limiter in conjunction with controllers such as the SMLC1 or SMLC2, guaranteeing safety and adherence to regulations like DIN EN 50156-1 and the Pressure Equipment Directive (PED).

Features

  • Automatic Self-Checking: Checks sensor functionality 52 times per second, eliminating the need for a manual test button.
  • Durable Design: Using stainless steel for the housing and probe, and PTFE for the insulator, ensures resistance to corrosion and high temperatures.
  • Standard Mechanical Connections: Equipped with ½” G thread connection (SW27) for easy installation.
  • IP65 protection: Resistant to dust and water spray, suitable for harsh industrial environments.
  • Safety Certification: Meets SIL 3 safety standards and has CE 0035 certification.

Applications

The EL030 Level Probe is ideally used in a variety of industrial applications, including:

  • Steam Boilers: As a low water level limiter to prevent waterless operation which can cause serious damage.
  • Industrial Heating Systems: Ensures water levels remain within safe limits for efficient and safe operation.
  • Chemical and Petrochemical Industry: Used in tanks and reactors to monitor liquid levels in critical processes.
  • Power Generation: Ensures safe and efficient operation by monitoring water levels in cooling systems and boilers.

Specifications

  • Model : EL030
  • Maximum Pressure (PS) : 32 bar
  • Maximum Operating Temperature (TS) : 239°C
  • Mechanical Connection G : ½” (SW27)
  • Electrical Connection : Plug with screw terminals and pull relief
  • Housing Material : Stainless Steel
  • Probe Material : Stainless Steel
  • Insulator Material : PTFE
  • Socket Material : Polyamide
  • Malleable Iron : Sealing Ring Material
  • Protection : IP65 as per DIN VDE 0470
  • Maximum Temperature at Plug : 100°C
  • Minimum Length (Y) : 125 mm
  • Maximum Length (Y) : Up to 1700 mm depending on application
  • Certification : CE 0035, SIL 3
