Sale!

Original price was: Rp 8.452.000.Current price is: Rp 8.352.000.

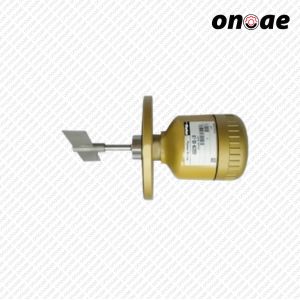

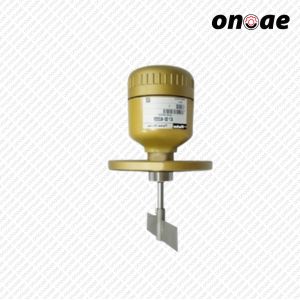

Level Switch Parker JC7-SD 150mm

Minimum Order: 1 units

Product Note:

Ready Stock

SKU: LEVELSWITCHPARKERJC7-SD150MM Categories: , Tags: , ,

Available on backorder

Contact us

Description

Description of Level Switch Parker JC7-SD 150mm

The Parker JC7-SD is a rotary paddle level switch that uses a motor with two-wing paddles to detect the level of powdered or granular materials inside hoppers, silos, and tanks. When the paddle is touched by the material, its resistance stops the paddle and activates a microswitch as a level signal. The 150 mm model refers to the length of the detection rod from the flange to the paddle.

Features

  • Ø150 mm detection rod (SD mode with two-wing paddles), optimal for intermediate levels.
  • 6 RPM synchronous motor with 500-1000 g-cm paddle torque.
  • Low power consumption (~3 W when the paddle is rotating), suitable for continuous operation.
  • Weatherproof aluminum housing, designed for outdoor use.
  • Microswitch contacts 3 A @ 250 VAC – compatible with relay or PLC control.
  • Used in temperatures from 0-60°C, and heat-resistant options (up to +120°C) are available.

Applications

  • Mid-level detection of granular or powdered materials in silos, hoppers, and feeders.
  • Prevention of overfill or run dry to avoid machine/process damage.
  • Used in food, agriculture, plastics, pharmaceutical, cement industries.
  • Ideal for automation system integration, with control via PLC/relay.

Specifications

  • Model JC7-SD-AC110/220V-150 mm
  • Detection Rod 150 mm long from flange to paddle
  • Voltage 110 V or 220 V AC (50/60 Hz)
  • Paddle Speed 6 RPM ±10 %
  • Paddle Torque 500-1000 g-cm
  • Power ~3 W when paddle rotates
  • Microswitch Output Contact 3 A @ 250 VAC
  • Weatherproof Aluminum Housing
  • Operating Temperature 0-60 °C (optional +120 °C)
  • Media Powder, granules, grains, flour
  • Mounting Orientation Flange ISO suitable for mounting
