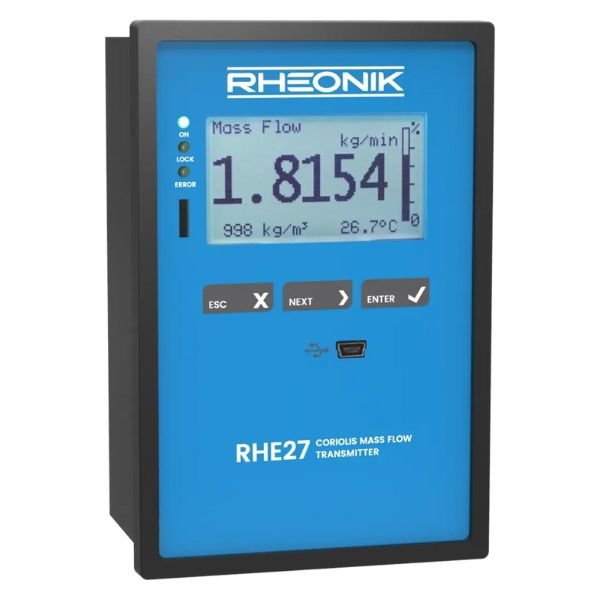

Rheonik RHE 27 Panel Mount Flow Transmitter

Name: Rheonik RHE 27 Panel Mount Flow Transmitter | onoae
Price: 89350000 IDR
Availability: InStock

Product Note:

No product notes available.

Categories: Coriolis Mass Flow Meter, Flow Measurement Tags: Coriolis Mass Flow Meter, Flow Measurement, Rheonik

Description

Rheonik RHE 27 Panel Mount Flow Transmitter With highly accurate measurement performance and extreme capabilities, Rheonik meters are a natural choice for many applications and quickly provide payback through improved product quality and greatly reduced maintenance. Whether used for transfer, batching, process feed, or control, Rheonik meters can provide online flow and density measurement.

Description of Rheonik RHE 27 Panel Mount Flow Transmitter

Rheonik RHE 27 Panel Mount Flow Transmitter is an advanced function transmitter designed for rack or panel mounting in an indoor environment. Features such as API Standard Volume correction and Net Oil calculation are available.

Measures Mass Flow, Volumetric Flow, Density and Temperature
Outputs 2 x Analog, 2 x Frequency/Pulse, 2 x Digital Status,´
Inputs 2 x Digital, 1 x Analog
PC USB for RHECom, RS 485 for Modbus RTU, HART over Analog
Optional Backlit Color LCD
ATEX/IEC Ex, CSA approved
Rheonik Assurance Factor®

Features

• Rack/Panel Mounting
• Operate with RHM sensor in hazardous area
• Selectable Units for Mass, Volume, Density and Temperature
• Positive, negative and net totalizers for both volume and mass flow
• Two configurable pulse/frequency outputs -double pulse available
• Two analog outputs
• Two configurable digital status outputs
• Configurable digital input
• Analog input configurable for pressure or density
• Advanced functions: Net Oil, Baume/Brix,
% Solids,Standard Density and Standard
Volume {API MPMS Ch.11)
• Modbus RTU and HART
• Custody transfer lockout switch and seal point
• Back Lit Color LCD display and 3 operator
• USB connection for PC running Rheonik RHECom software
• Built-in Assurance View Advanced
Diagnostic Set -clear publication of
measurement status with Assurance Factor
and/or color changing display
• Password Protected Setup
• Upload and download of configuration files
• Power consumption less than 5W
• Optional lockable front cover

Applications

General process flow measurement
Batching and mixing
Feed stocks and transfers
Custody transfer

Specifications

Housing: IEC61554 panel mount housing. Optional lockable front cover
Enclosure Rating: IP20 (front) IP54 with optional lockable cover
Ambient Temperature: -20°C to +60°C (40°F to +140°F)
Dimensions: 96 x 144 x 61/75 mm (3.78 x 5.67 x 2.4/2.95 in)
Display: Backlist color LCD. Screen changes color to indicate warning or errror
Weight: 0.55 kg / (1.2 lb)
Operation: 3 x fornt panel operator buttons for all menu navigation and settings
Sensor Connection: Pluggable terminal strip. Cable available in lengths up to 100 m connection to remote sensor
Analog Outputs: Up to 2 x 4-20mA outputs, active or passive, compl. to NAMUR NE-43
Digital Outputs: Up to 2 x configurable status outputs (IEC60946)
Analog Input (optional) : 1 x 4 – 20mA analog input (active) for two-wire external sensor
Power Supply: 100-240 VAC (48 to 62 Hz) 5W or 12-24 VDC +/- 10%, 4W
Digital Data Communications:
Modbus RTU (R5485)
Connection to a PC (USB) with Rheonik RHECom software
HART over analog output (optional)
Hazardous Area Approvals: For ATEX / IECex, cCSAus for RHE27 in ordinary locations area, RHM in all zones – please see Part Number Code Page. Others available on request
