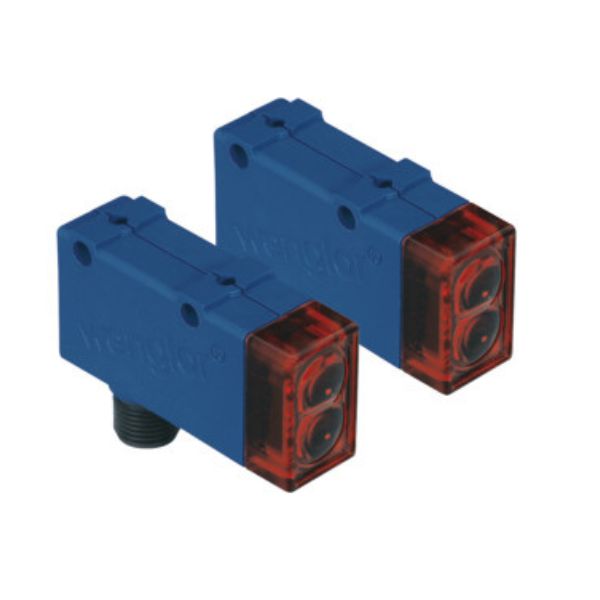

Wenglor SM982 Through Beam Sensor

Wenglor SM982 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features at a Glance:

Compact housing
Red light
Test input

Electrical Data:

Compact housing
Red light
Test input
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Optical Data
Range: 10000 mm
Light Source: Red Light
Service Life (T = +25 °C) : 100000 h
Opening Angle: 4 °
Electrical Data
Sensor Type: Emitter
Supply Voltage: 10…30 V DC
Current Consumption (Ub = 24 V) : < 40 mA
Temperature Drift: < 10 %
Temperature Range : -10…60 °C
Reverse Polarity Protection: yes
Protection Class: III
Mechanical Data
Housing Material: Plastic
Full Encapsulation: yes
Degree of Protection: IP67
Connection : M12 × 1; 4-pin

Features

Compact housing
Red light
Test input

Applications

Overhang Monitoring in Pallet Warehouses Using Through-Beam Sensors

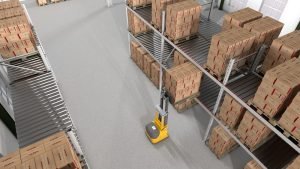

In automated pallet warehouses, pallets are transported and placed on several rack levels by forklift trucks. The lanes must be clear at all times, otherwise there is a risk of collisions. Through-beam sensors are installed at the outer ends of the high-bay racks on all levels to detect protruding pallets immediately. Even in the event of interference factors such as dust, dirt or ambient light, the light barriers with red light reliably switch over long distances.

Through-Beam Sensors

Through-beam sensors detect and count small parts, detect the edges of objects and monitor passages in systems. The emitter and receiver are housed in separate housings according to the through-beam mode. The sensor switches as soon as an object interrupts the laser light, red light or infrared light.

Specifications

Optical Data
Range	10,000 mm
Light Source	Red Light
Service Life (T = +25 °C)	100,000 h
Opening Angle	4 °

Electrical Data
Sensor Type	Emitter
Supply Voltage	10 … 30 V DC
Current Consumption (Ub = 24 V)	< 40 mA
Temperature Drift	< 10 %
Temperature Range	-10 … 60 °C
Reverse Polarity Protection	yes
Protection Class	III

Mechanical Data
Housing Material	Plastic
Full Encapsulation	yes
Degree of Protection	IP67
Connection	M12 × 1; 4-pin
