Sale!

Original price was: Rp 39.907.000.Current price is: Rp 38.907.000.

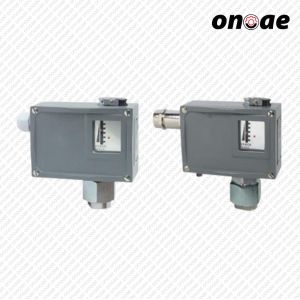

Pressure Switch Model 501/7D

Minimum Order: 1 units

Lead Time: 6 weeks

Product Note:

No product notes available.

Categories: , Tags: , ,

Available on backorder

Contact us

Description

The Pressure Switch Model 501/7D utilizes a diaphragm-style sensing mechanism and features a mechanical multi-control switch design.
This intrinsically safe switch operates in a retro-reflective detection mode and is equipped with a Normally Open (Type A) contact configuration.  The Sensor of Switches utilize Diaphragm style,the housing material for partial specification is stainless, it can be suitable for neutral gas and water, hydraulic pressure oil,lubricating oil,light fuel ect. Fluid medium. the Set Point is adjustable, and its adjustable range is from 0 to 1Mpa.



Features

Features

  • Adjustable Set Point:
    Set point range typically from 0 to 1 MPa (0–10 bar), allowing users to calibrate it based on system requirements.

  • Pressure Sensing Element:
    Utilizes a diaphragm mechanism for accurate response to pressure changes in both gas and liquid media.

  • Mechanical Switching:
    Incorporates a micro-switch (SPDT or DPDT) that actuates when pressure crosses the set threshold, ideal for controlling pumps, compressors, and alarms.

Applications

Application:

  • Hydraulic and Pneumatic Systems

  • Pump and Compressor Control

  • Boiler and Burner Safety Systems

  • Oil and Gas Processing

.

Specifications

Specification

  • Model : 501/7D
  • Measure Range : 0-1Mpa
  • Use Range : 0-0.7
  • Max. Pressure : 1Mpa
  • Working Viscosity : <1×10-3m2/s
  • Switching Elements : Microswitches
  • Explosionproof Class : None
  • Ambient Temperature : -40°-50°C
  • Medium Temperature : 0~120°C
  • Mounting Position : None
  • Working Viscosity : <1×10-3m2/s
  • Switching Elements : Sealed Switches
  • Protection Class Of Enclosure : IP54 (accord with DIN40050)
